Hydraulic Punching Machine,Hydraulic Hole Punching Machine

Q35YS Series

Single Cylinder Hydraulic Punching Machine

Product Description

DURMAPRESS® The Single cylinder hydraulic punching machine often use in metal fabrication. In addition to hole punching, it can also be used for pipe notching and joint, plate bending, angle steel bending, radius corners, rounding off corners, bilateral rounding off and so on.

Product Details

• CE certification guarantees the machine quality and safety up to standards.

• The hydraulic punching machine has low noise and does not damage the eardrum of the worker.
• Max. punching capacity is 200 tons which can punch Max. thickness up to 35mm.Movable food pedal
• Single punching and continuous punching for choice.
• Quick-change devices are installed to change punch and die faster and more efficiently. (16 seconds, manual)
• The stripper is for sheet plate or profiles steel stripping after punching. The height of the stripper is adjustable.
• Work efficiency can be improved by adjusting the stroke of the punching station. You can punch up to 22 times per minute.
• X, Y-axis scales on the working table to fix the hole position.
• DURMAPRESS® supply the optional cooling system which for cooling the hydraulic oil to prevent the oil seal from aging and oil leakage, improving the lifetime of the machine.
• Work lights can make it easier for workers to see the processing condition.
• DURMAPRESS® has designed an automatic feeding device for punching or cutting large-sized profile steel. You can choose it according to your needs.
• 2-year warranty and lifetime technical support.

Over 15 Years Of Experience In Top Level Controls

Hydraulic Punching machine Description

If you only want to punch holes in sheet plate or profile steel, then a single-cylinder hydraulic punching machine is good choice.

In addition to punching round holes, square holes, oblong holes, it can also be used for pipe notching and joint, plate bending, angle steel bending, radius corners, rounding off corners, bilateral rounding off and so on. We can make it as single-phase voltage for home use. We can also be made as three-phase voltage for use in your factory.

Machine safety and operator’s safety have always been the goal of DURMAPRESS®. We have always been committed to the safety of the machine. The emergency stop switch is installed on the working station. The visual safety shield is installed on the punching station.

Punching Mold

DURMAPRESS® Punching Die size can be customized , You can tell us your Request , and we will make design and offer you

Punching Working Table

Working Table can be changed to different punching usage Such as change to Ventilation Grill Toolings , and folding toolings 100mm width , 170mm width , Flower Cutting die for 8 petals ,Flower Inlaying Toolings , Leaf Cutting Die , Flower Inlaying tool

Kacon Foot Switch

The Kacon HRF-HD3N medium duty foot switch has a 1 NO + 1 NC contact arrangement with momentary operation and a die cast aluminum housing. Features integrated Z type micro switch. Rated IP 65. Operation: The pedal is held down to power the switch on, and released to turn off.

Specifications

• Switch Dimensions- 100mm W x 211mm L x 125mm H
• Foot Switch Operation- Momentary
• Contact Arrangement- 1 NO + 1 NC
• Rated Current- 15A, 250V AC
• Integrated Switch- Z Type Micro Switch (CE Certified)
• Housing Material- Die Cast Aluminum
• Cable- 1/2" Tap Flexible Cable (Zinc connector 10-16)
• Ingress Protection- IP 65
• Approvals- UL & CUL Recognized, CE

Bending Toolings ( Optional)

Folding Length 100mm

Tooling to fold steel sheet and flat bar up to 100mm. Punch 88º. Die with 56mm and 26mm V's.

DURMAPRESS ® Press Brake Toolings

Stress Analysis & Finite Element Analysis

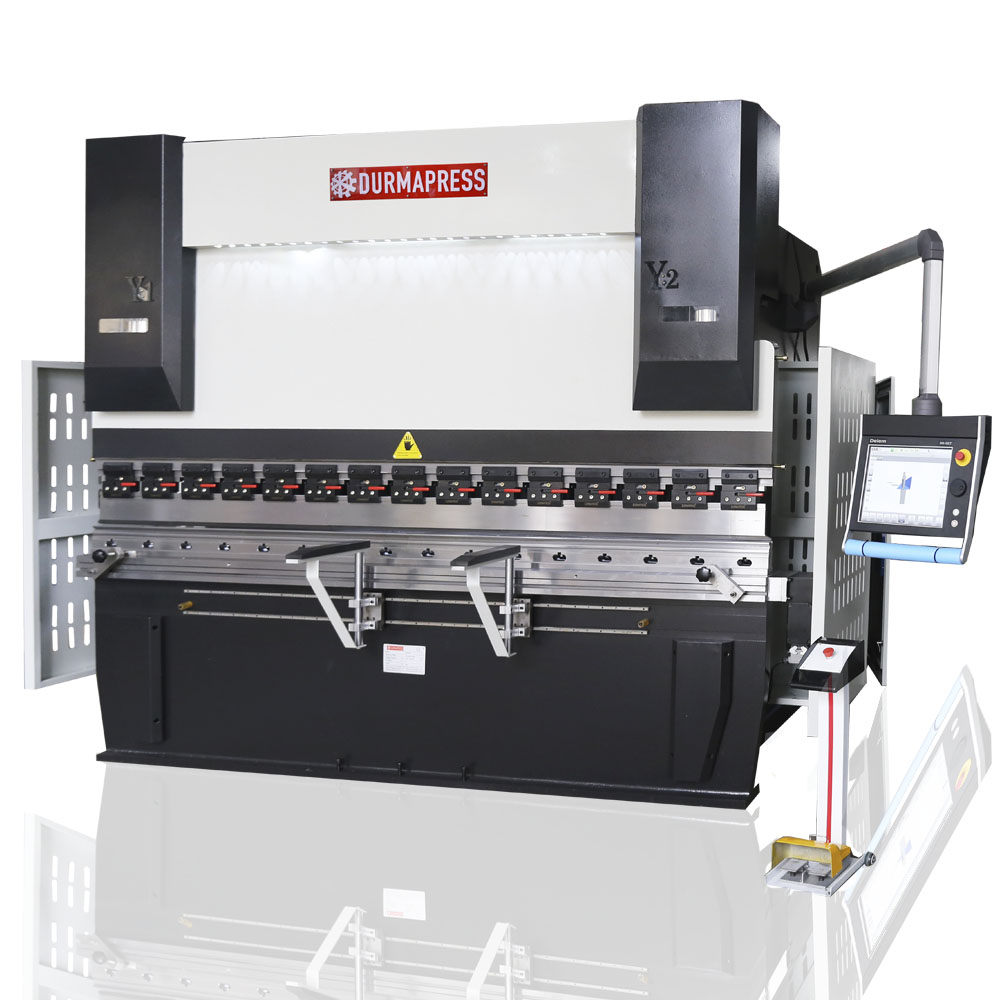

DURMAPRESS ® Press Brake is a machine pressing tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die. Tooling tolerances should be checked each time a punch and die are selected. It is the operator’s responsibility to ensure the tooling fitrs the manufacturer’s specifications, as well as making any adjustments necessary.

DURMAPRESS Economic Smart Series

Includes Following Features And Properties

Less Waste, Less Maintenance

High Performances

Same Job, 50% Less Energy

High Dynamic Y-axis Control

Over 30% higher productivity

Technical Parameter

Model	Unit	Q35YS-16	Q35YS-20	Q35YS-25	Q35YS-30	Q35YS-40
Pressure	T	60	90	120	160	200
Material Strength	N/mm²	450	450	450	450	450
Max. Length of Cylinder Stroker	mm	80	80	80	80	100
Number of strokes	Times/min	11-20	12-20	8-18	6-16	6-16
Throat depth	mm	300	355	400	600	530
Punching Thickness	mm	16	20	25	28	35
Max. Punching Diameter	mm	25	30	32	38	45
Main Motor Power	KW	5.5	7.5	11	15	18.5
Overall Dimensions (LWH)	mm	14007001700	17509001750	21559601990	260010502150	270011502350

Components

Name	Details	Manufacturer	Remarks
Valve Block	•Open loop	Rexroth
Back gauge	•X axis	Durmapress	Optional
Oil pump	•Sunny oil pump	Sunny
Main power system	•AC motor	Siemens
Wind-Cooler for Oil	•China	Durmapress
Wind-Cooler for Oil	•Single rail movable type	Durmapress	Optional
Electric	•Schneider Relay	Schneider	Open door power protection
Foot switch	•Korean Kaikun vertical switch
Sealing Ring	•Parker	USA
Oil Pipe Connector	•High Pressure Hose	Durmapress
Security	• Side (Guardrail) + Rear (Guardrail)	Durmapress
	• Side (Guardrail ) + Rear (Guardrail)
	• Side (Guardrail ) + Rear (Guardrail)
Backguage	• 1000mm automatic back gauge for controlling the cutting length of sheet plate and profile steel.	Durmapress	Optional
Controller	•ESTUN E21	ESTUN,CHINA	Optional
