OPEN TYPE FIBER LASER CUTTING MACHINE
New Design Metal Plate and Tube Fibre Laser Cutter BS3015-22EQ  is equipped with BOSSOR fiber laser device, the laser power is from 1KW to 4KW

  • 12000
    sq.m
  • 1000
    employees
  • 100
    R&D Engineer
Professional Techincal Team
We have an excellent technical team, which can be designed according to customers requirements.

STANDARD COMPONENTS

This area can be fully edited and gives you the opportunity to introduce yourself.
Switzerland Raytools Cutting Head
Domestics Famous Brand Raycus Laser
Taiwan YYC Rack and HIWIN Linear Rail
Japan Shimpo Reducer
Taiwan Delta AC Servo Motor and Drive
Shanghai Cypcut Cutting System
Japan SMC+AirTAG Pneumatic Component
China Hanli Chiller
Machine Platform and Accessories

OPTIONAL

This area can be fully edited and gives you the opportunity to introduce yourself.
  • Germany Precitec Cutting Head
  • Shenzhen WSX Cutting Head
  • Germany BECKHOFF Control System
  • Germany IPG Laser Resource
  • USA N-light Laser Resource
  • Voltage Stabilizer
  • Japan Yaskawa Servo Motor and Drive
  • Germany Alpha Reducer
  • Camera Monitoring
MORE DUST AND SMOKE EXHAUST PATITION
The number of dust and smoke extraction zones has increased from 3 to 4, and the width of each zone is about 650mm,the effect of dust removal and smoke extraction is better, the hopper slope has increased to 40°, and the leakage is smoother.

Graphite Anti-burning

The fiber laser machine will be equipped with graphite anti-bruning (≥8000W)and copper plate(Optional) protection,insuring the machine bed and
working table not be out of shape and burned-out.

Swiss Raytools cutting head Without manual operation, it can focus automatically
LASER CUTTING HEAD
The Raytools/Precitec laser cutting head with auto sensor function is suitable for different focal lengths and controlled by the system. For the sheet metal with different thicknesses, the focal point will be automatically adjusted in cutting process to achieve the best cutting effect.
CONTROLLER
Cypcut Control System. Professional CAD / CAM automatic programming software and automatic nesting software, support both Chinese and English interface, rich process parameters, to maximize the savings of raw materials.

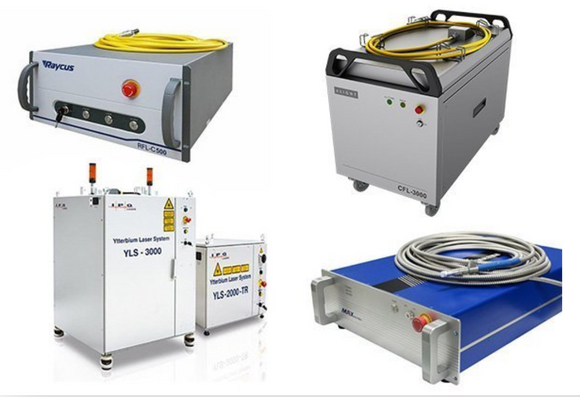

LASER SOURCE
The brand of our fiber laser source including Raycus (China), Max (China), nLight (USA), IPG (Germany), with the power from 500W to 12,000W.

Fast Clamp Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-220mm.
Electrics
Schneider electrics are been used to ensure the good performance of our fiber laser cutter.
Fiber Laser Cutting Machine Technical Data
No. Type BS1530G BS1540G BS2040G BS1560G BS2060G BS2560G
1 Max Cutting Size(mm) 1500x3000 1500x4000 4000x2000 1500x6000 2000x6000 2500x6000
2 Max Height of The Workpiece(mm) 90 90 90 90 90 90
3 Effective Travel X Axis(mm) 1505 1505 2005 2005 2005 2505
Y Axis(mm) 3005 4005 4005 6005 6005 6005
Z Axis(mm) 150 150 150 150 150 150
4 Positive Accuracy X Axis(mm) ±0.04 ±0.04 ±0.04 ±0.04 ±0.04 ±0.04
Y Axis(mm) ±0.04 ±0.04 ±0.04 ±0.04 ±0.04 ±0.04
Z Axis(mm) ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
5 Reapeated Positioning Accuracy X Axis(mm) ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03
Y Axis(mm) ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03
Z Axis(mm) ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005
6 Re-positioning Speed X Axis(mm) 110 110 110 110 110 110
Y Axis(mm) 110 110 110 110 110 110
Z Axis(mm) 110 110 110 110 110 110
7 Tube Diameter mm 20-220 20-220 20-220
8 Accelerated Speed(G) 1.5 1.5 1.5 1.5 1.5 1.5
9 Level of Protection IP54 IP54 IP54 IP54 IP54 IP54
10 Total Weight(kg) 5200 5900 6400 7600 7900 8100
11 Boundary Dimension L*W*H 7600x3200x1800 8600x3200x1800 8600x3400x1800 10700x2900x1800 10700x3400x1800 10700x3600x1800
