Heavy Duty Hydraulic Guillotine Shearing Machine - E21S

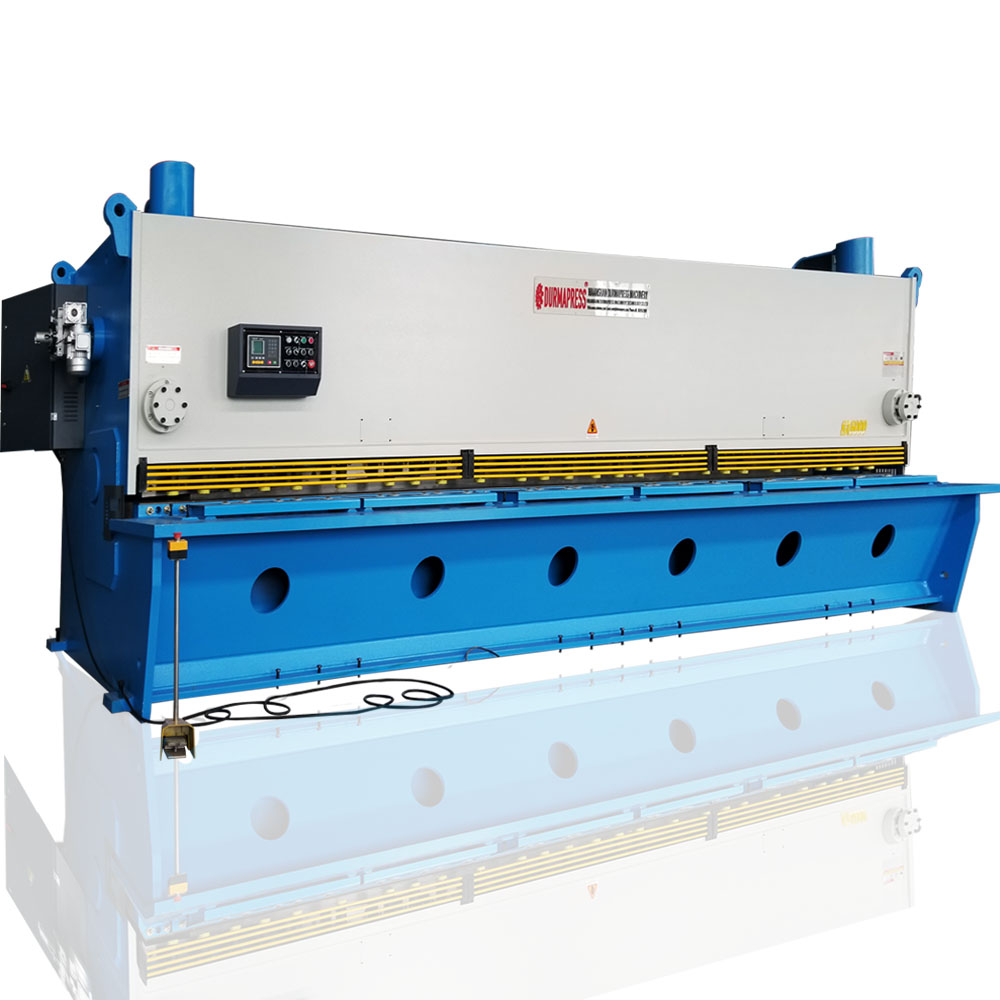

Heavy-duty Hydraulic Guillotine Shear
Specially designed to cut thicker plate.
Model: QC11K
Controller: E21s
Capabilities: customized.

Quantity:
  • Heavy Duty Hydraulic Guillotine Shearing Machine
  • Durmapress
  • 8462399000
Product Description

General Features

  • Durmapress Guillotine Shearing machine adopt ball screw,linear guide and servo motor to drive the back gauge with high positioning accuracy

  • Integrated steel welded structure,eliminate stress by vibration,with good rigidity

  • Adopt the advanced hydraulic integrated valve black which is in compact structure and will reduce piping connections, and improves system reliability and maintainability

  • Optional Estun E200PS, DELEM DAC310s and DELEM DAC360s CNC controller

  • Serials connection of oil cylinder to prevent the cutting angle changing during the operation of the shearing machine

  • Accumulator return smooth and rapid

  • Manual/automatic adjustment of blade clearance (depend on the controller), accurate, rapid and convenient

  • Adjustable shear angle to reduce sheet distortion

  • Motorized back gauge and position display make it convenient and precise

  • Rolling material support ball will reduce the scratch and frictions as well


STANDARD COMPONENTS

  • Estun E21S NC controller

  • Germany BOSCH-REXROTH hydraulic system

  • Germany SIEMENS motor

  • SAEMP/Sunny oil pump

  • Taiwan HIWIN/HAWKKING ball screw

  • Germany cutting sleeves and joint

  • France Schneider eletrics

  • Light alignment device

  • Manual blade gap adjustment

  • Manual cutting angle adjustment

  • Blade material 6CrW2Si


OPTIONAL

  • Motorized cutting angle adjustment device

  • Estun E200PS servo motor & drive + Taiwan HIWIN ball screw.

  • DAC 360 servo motor & drive + Taiwan HIWIN ball screw & linear guide

  • Auto blade gap & cutting angle adjustment

  • Cooling System


guillotine shearing machineGuillotineGuillotine shearing                                 Guillotine cutterGuillotine cutting machineShearing Machine shearing machine bladecutting machinemetal guillotineguillotine shearhydraulic metal shearguillotine metal cutter

Components

No.

Name

Model/Manufacturer

Others

Configuration

1

CNC system

□E21S NC System Estun

Standard

2

Electrics

Schneider Electric-France

Travel switch&Limit Switch

3

Main Motor

Siemens Motor-Germany

4

Back Stopper,Timing Belt,Timing Pulley

Taiwan

Positioning Control Guaranteed Precision

5

Frequency Converter

DELTA -Taiwan

positioning Control / Guaranteed Precision

6

Oil Pump

Sunny -USA

7

Pedal Switch

Kacon-South Korea

8

Hydraulic System

Bosch Rexroth-Gemany

9

Sealing Ring

PARKER-America/NOK-Japan

10

Oil Tube Connector

EMB-Gemany

11

Front Safeguard

Produced by Durmapress

12

Back Safeguard

Produced by Durmapress

13

Die

One Set of standard Dies

14

Backguage

Ball Screw and Rod,Liner Guide Rail-China

19

Back Pneumatic Support

Produced by Durmapress

Optional

20

Before-Cutting Feeder

Produced by Durmapress

22

Front Photoelectricity Protection

China

23

Back Photoelectricity Protection

China

24

Backguage

Ball Screw and Rod,Liner Guide Rail-Taiwan,HIWIN

27

Safety Standard

□CE □CSA □NR-12 □OSHA


Technical Data
型号Model 可剪板厚Cutting thickness 可剪板宽Cutting Width 剪切角Cutting angle 后挡料调节范围Backgauge travel (mm)主电机功率Power (KW)机器重量Weight(KG)Hold downs (piece)外形尺寸 Dimension (LxWxH)
6x25006.524800.5-37507.53800143140x1740x2040
6x30506.530500.5-37507.55500173750x1770x2150
6x40506.540000.5-3750117500234830x1840x2100
6x50006.550000.5-3750118500
5940x1900x2200
6x60006.560000.5-37501114000
6480x2100x2300
8x2500824800.5-3750114000143040x1780x2100
8x3050830500.5-3750115800173860x1800x2150
8x4050840000.5-3750118000234640x1900x2200
8x5000850000.5-37501111500
5400x2100x2250
8x6000860000.5-37501116000
6480x2200x2350
10x25001024800.5-3750116500143040x1800x2100
10x30501030500.5-3750158000173855x1830x2150
10x40501040000.5-37501512000234650x2200x2200
10x60001060000.5-37501524000
6500x2300x2350
13x25001324800.5-3750158500143285x1830x2390
13x30501337000.5-375018.510000173855x1900x2390
13x40501340000.5-3100018.513500214350x2100x2390
16x25001624800.5-310002214000143440x1940x2700
16x30501630500.5-310002215000174010x1940x2700
16x40501640000.5-310002216500235010x1980x2700
16x50001650000.5-310002225000
5900x2600x2830
16x60001660000.5-310002232000
6900x2700x2830
20x25002024800.5-310003717000143440x1980x2830
20x30502030500.5-310003720000174010x1980x2830
20x40502040000.5-310003722000234850x2600x2900
20x60002060000.5-310003738000
6700x3000x3000
