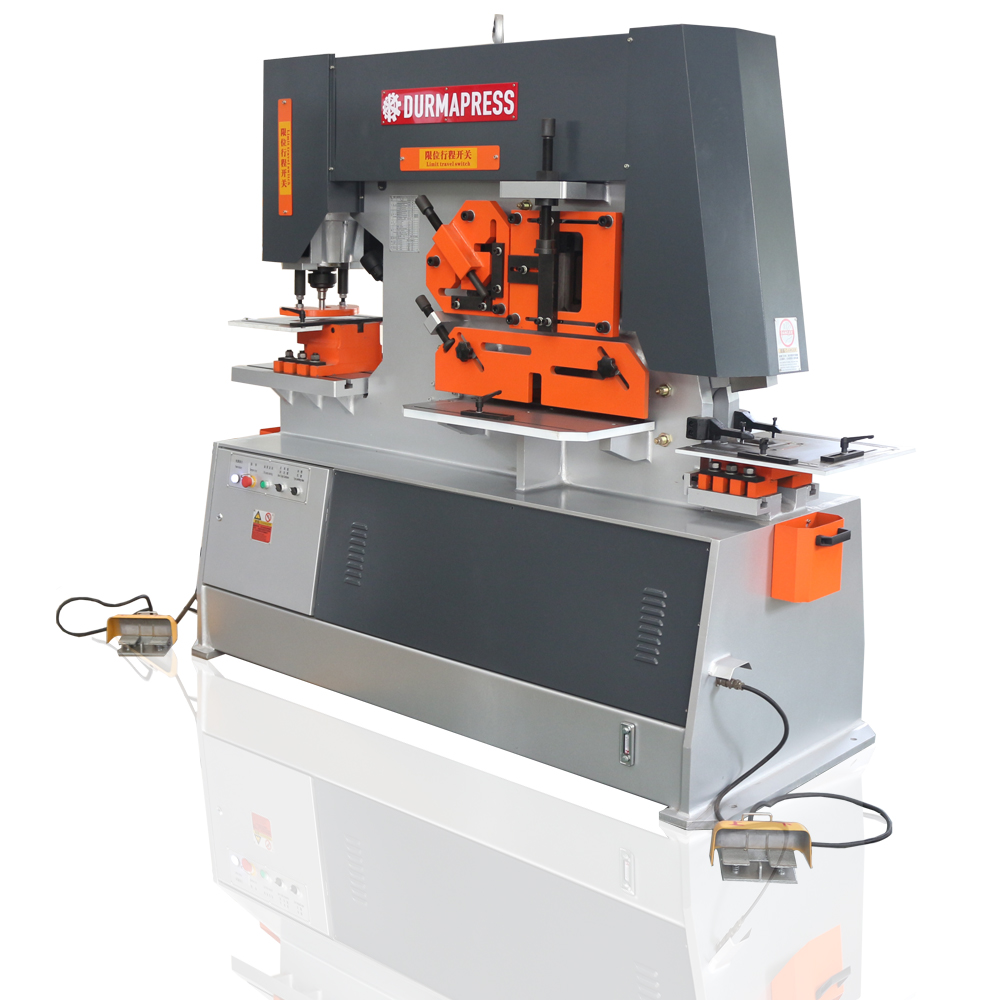

Ironworker machine, also been called punch shears, is one kind of machine tools which combined the function of metal cutting, hole punching, plate cutting, notching, and bending. It has features of easy operation, low energy consumption, low maintenance cost, etc, mainly applied in metallurgy, bridge, communication, electric power, military industry.

Quantity:
  • Q35Y Series
  • Durmapress
  • 8462490000
Product Description

Main Features

This series of products are ideal equipment for cutting all kinds of angle steel, I-beam, U-shape steel, right angle or 45 degree angle steel. Multi-workstations make it possible to finish series operations simultaneously on one machine, such as punching, shearing and notching, Dual-piston-type combined punching and shearing machine allows two-man operation at the same time (stamping +another work station), German Rexroth’s integrated hydraulic valve block ensures the stability of the machine, Through Thermal Effect of annealing processing, the entire rack is able to keep its shape forever, without deformation. The introduction of imported brand accessories ensures the parts’ service life and use precision.

General Features

Ironworker machine, also been called punch shears, is one kind of machine tools which combined the function of metal cutting, hole punching, plate cutting, notching, and bending. It has features of easy operation, low energy consumption, low maintenance cost, etc, mainly applied in metallurgy, bridge, communication, electric power, military industry.

The structure includes:

  • Punching station

  • Section cutting station

  • Angle station

  • Shearing station

  • Notching station

STANDARD COMPONENTS

  • A set of punch and die(round hole)

  • A set of angle steel blade

  • A set of square and round bar blade

  • A set of shearing plate blade

  • A set of notching blade

  • 2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time

  • More efficient stroke-control functions of piston rod

  • Central lubricating system

  • Motor-driven rear stopper

  • Lighting devices for work

  • 5 independent work-positions


Optional


  • Various toolings for different purposes

  • Square, oval, louver punch and die

  • Channel shear and I-beam shear

  • Conveyor table

  • Longer worktable

  • Worktable with linear guide

  • Φ20, 32, 60mm U type circle

Hydraulic ironworkerHydraulic ironworker machineIronworker functionsPunching Mold for ironworker


Components
NO.ItemManufacturerRemarks
1-ElectricsSchneider - FranceStandard
2-Main motorSiemens - Germany
3-Oil pumpSUNNY- USA
4-Valve blockRexroth - Germany
5-Pedal switchKACON - South Korea
6-Wind-cooler for oilChina
7-Sealing ringParker-USA
8-Oil pipe connectorHigh - pressure hose - Germany
9-Safety guardDurmapress
10-Manual stopper positioningDurmapressOptional
11-Electric stopper positioningDurmapress
12-Automatic holding system ( Manual & Automatic)Durmapress
13-Infrared ray positioning ( Punching position )China
14-Tandem (punching part and shearing part can be operated separately at the same time)Durmapress



Technical Data

Type

Q35Y-12

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Q35Y-40

Q35Y-50

Punching Pressure(Ton)

35

60

90

120

160

200

250

Max. Shearing thickness (mm)

12

16

20

25

30

40

50

Plate strength (N/m㎡)

450

450

450

450

450

450

450

Angle of shearing ( degree )

7°

7°

8°

8°

8°

8°

8°

Shearing size of one stroke (mm)

12x160  6x300

16x250  8x400

20x330  10x480

25x330  16x600

30x335  20x600

40x335 30x600

50x300  30x750

Ram Stroke (mm)

35

80

80

80

80

100

100

Number of strokers (cpm)

10-18

11-20

12-20

8-18

6-16

6-16

6-12

Throat depth (mm)

115

300

355

400

600

530

600

Punching thickness (mm)

12

16

20

25

28

35

40

Max. Punching Diameter (mm)

25

25

30

35

38

40

45

Power of main motor (KW)

4

5.5

7.5

11

15

18.5

18.5

Overall dimension (mm)(L*W*H)

950x550x1800

1740x810x1830

1950x900x1950

2800x1050x2450

2800x1050x2450

2900x1100x2500

3200x1440x2500
