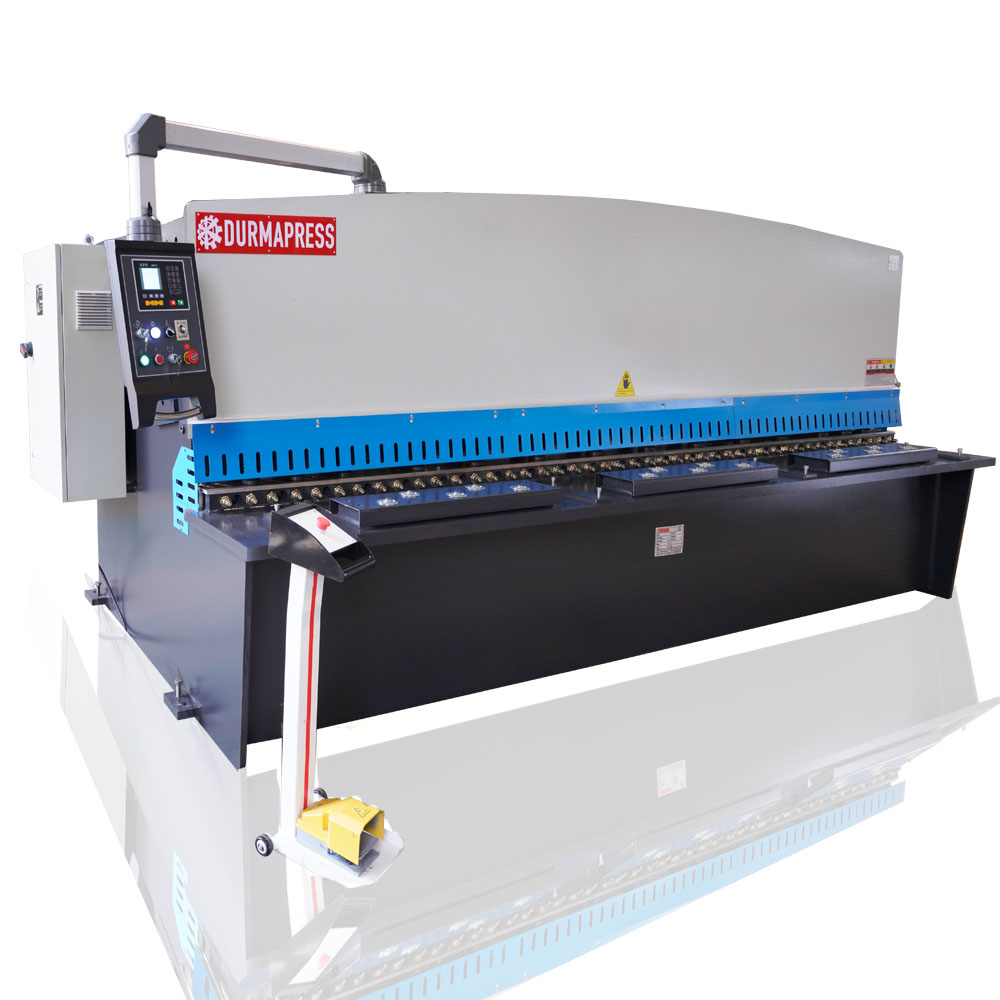

QC12Y NC Hydraulic Shearing Machine -E21S

Swing Beam Shearing Machine
Controller : ESTUN E21s NC Controller
Thickness: 0.1-20mm
Width :2500-6000mm
Material : Stainless steel , Mild steel , Aluninum
Availability:
Quantity:
Inquire Add to Basket

  • QC12Y Series

  • Durmapress

  • 8462399000

Product Description

General Features

  • Steel plate welded structure, hydraulic transmission, nitrogen cylinder return

  • Easy operation, reliable performance, beautiful appearance

  • The blade gap adjustment has a sign indication, the stepless adjustment is light and rapid

  • It has a light alignment device and can adjust the stroke of the top blade holder steplessly.

  • With hydraulic and electrical overload protection

  • Rolling material support ball will reduce the scratch and frictions as well

  • Adopt safety protection fence for the safety of workers

  • Straightness: ±0.10mm for 3m plate cutting

  • 50% faster than others (30 times/min for our 4x2500 shear while others is only 12 times/min)

  • Blade material:6CrW2Si

  • Heat treatment: 55°-60°HB

  • Low noise (70bd), gear pump drive by hydraulic

  • E21s, E200PS, DAC310S CNC system can be selected

STANDARD COMPONENTS

  • Hydraulic Valve: Rexroth

  • Electrics: Schneider

  • Oil Pump: Sunny

  • Oil Cylinder: Made in China

  • Main Motor: Siemens

  • Ball Screw Rod: Zeen/PMI

  • Linear Guide: Zeen/Schneeberger

  • Front Support: Normal Type

  • Back Support: Support Plate

  • Line Alignment Device: Light

  • Front Fence: Sheet Metal Type

  • Rear Protection: Warning Tape

  • Lubrication Device: Manual/Automatic Lubrication Device

  • Blade: Standard materials: 9GrSi/6CrW2Si

  • Pedal Switch: Simple Emergency Stop Type

  • Controller: E21S


OPTIONAL

  • Main Motor: WNM

  • Ball Screw Rod: HIWIN

  • Linear Guide: HIWIN

  • Front Support: Scale Adjustment Support / Angle Adjustment Support

  • Line Alignment Device: Laser Marking Device/Line Alignment

  • Front Fence: Light Curtain Protection/Section Upturned

  • Rear Protection: Light Curtain Protection/Rear Fence

  • Pneumatic Support: Pneumatic Rear Support

  • Hydraulic Oil Cooling Device: Air Cooling Device

  • Blade: H13

  • Pedal Switch: Roller Pedal Switch


Shearing Machine E21sShearing Machine E21sE21 NC Controllershearing machine motorValve of shearing machinefoot pedal of shearing machinenc shearing machineShearing Machine Shearing-Machine bladeShearing MachineShearing Machine E21s -11Shearing Machine E21s -12

Components

No.

Name

Model/Manufacturer

Others

Configuration

1

CNC system

□E21S NC System Estun

Standard

2

Electrics

Schneider Electric-France

Travel switch&Limit Switch

3

Main Motor

Siemens Motor-Germany

4

Back Stopper,Timing Belt,Timing Pulley

Taiwan

Positioning Control Guaranteed Precision

5

Frequency Converter

DELTA -Taiwan

positioning Control / Guaranteed Precision

6

Oil Pump

Sunny -USA

7

Pedal Switch

Kacon-South Korea

8

Hydraulic System

Bosch Rexroth-Gemany

9

Sealing Ring

PARKER-America/NOK-Japan

10

Oil Tube Connector

EMB-Gemany

11

Front Safeguard

Produced by Durmapress

12

Back Safeguard

Produced by Durmapress

13

Die

One Set of standard Dies

14

Backguage

Ball Screw and Rod,Liner Guide Rail-China

19

Back Pneumatic Support

Produced by Durmapress

Optional

20

Before-Cutting Feeder

Produced by Durmapress

22

Front Photoelectricity Protection

China

23

Back Photoelectricity Protection

China

24

Backguage

Ball Screw and Rod,Liner Guide Rail-Taiwan,HIWIN

27

Safety Standard

□CE □CSA □NR-12 □OSHA


Technical Data
型号
Type		可剪板厚Thickness(mm)可剪板宽Width(mm)剪切角 Cutting Angel(°)板材强度          Material Intension (KN/cm)后档料调节范围 Rear stopper adjusterment(mm)行程次数 Traver times保压时间 Hold downs(Pcs)主电机功率 Main power(kw)重量Weight(Kg)外形尺寸                  Overall dimension(LxWxH)mm
4x2500425001°30′≤45020-50010125.538003040x1610x1620
4x3200432001°30′≤45020-50010145.550003840x1610x1620
4x4000440001°30′≤45020-7508165.565004600x1700x1700
4x6000460001°30′≤45020-7505207.5110006460x2100x3200
6x2500625001°30′≤45020-50010127.550003040x1610x1620
6x3200632001°30′≤45020-7509147.560003840x1610x1620
6x4000640001°30′≤45020-7508167.582004620x1750x1700
6x5000650001°30′≤45020-7506187.5105005400x1800x1900
6x6000660001°30′≤45020-75052011165006480x2100x2300
8x2500825001°30′≤45020-75010127.560003040x1700x1700
8x3200832001°30′≤45020-7508147.572003860x1700x1700
8x4000840001°30′≤45020-7508167.588004640x1700x1700
8x5000850001°30′≤45020-7508187.5115005400x2100x2000
8x6000860001°30′≤45020-75082011180006480x2100x2350
10x25001025002°≤45020-7509121173003040x1700x1700
10x32001032002°≤45020-7509141180003860x1700x1700
10x40001040002°≤45020-75081611120504650x2100x2000
10x60001060002°≤45020-75052015240006500x2100x2300
12x25001225001°40′≤45020-75091218.590003140x2150x2000
12x32001232001°40′≤45020-75091418.5108003880x2150x2000
12x40001240001°40′≤45020-75081618.5130004680x2150x2000
12x50001250002°≤45020-75061818.5160005900x2150x2000
12x60001260002°≤45020-100052018.5295006900x2600x2700
12x80001280002°≤45020-100052418.5465009000x3500x3500
16x25001625002°30′≤45020-75091218.5110003140x2150x2000
16x32001632002°30′≤45020-75081418.5130003880x2150x2000
16x40001640002°30′≤45020-75081618.5163004650x2150x2000
16x50001650002°30′≤45020-100061818.5200005900x2600x2700
16x60001660002°30′≤45020-100052022360006900x2700x2700
16x80001680002°30′≤45020-100052422750009000x3500x3500
20x25002025003°≤45020-75081222158003440x2300x2500
20x32002032003°≤45020-100081422185004150x2350x2700
20x40002040003°≤45020-100051622215004850x2600x2700
20x60002060003°≤45020-100042022470006700x3000x3000
25x25002525003°≤45020-100081237190003200x2700x2900
25x32002532003°≤45020-100051437230004200x2700x2900
30x25003025003°≤45020-100041237235003300x2900x3000
30x32003032003°30′≤45020-100041440260004200x2900x3200
40x25004025004°≤45020-100031275380003200x3300x3000
40x32004032004°≤45020-100021490490004300x3300x3200
