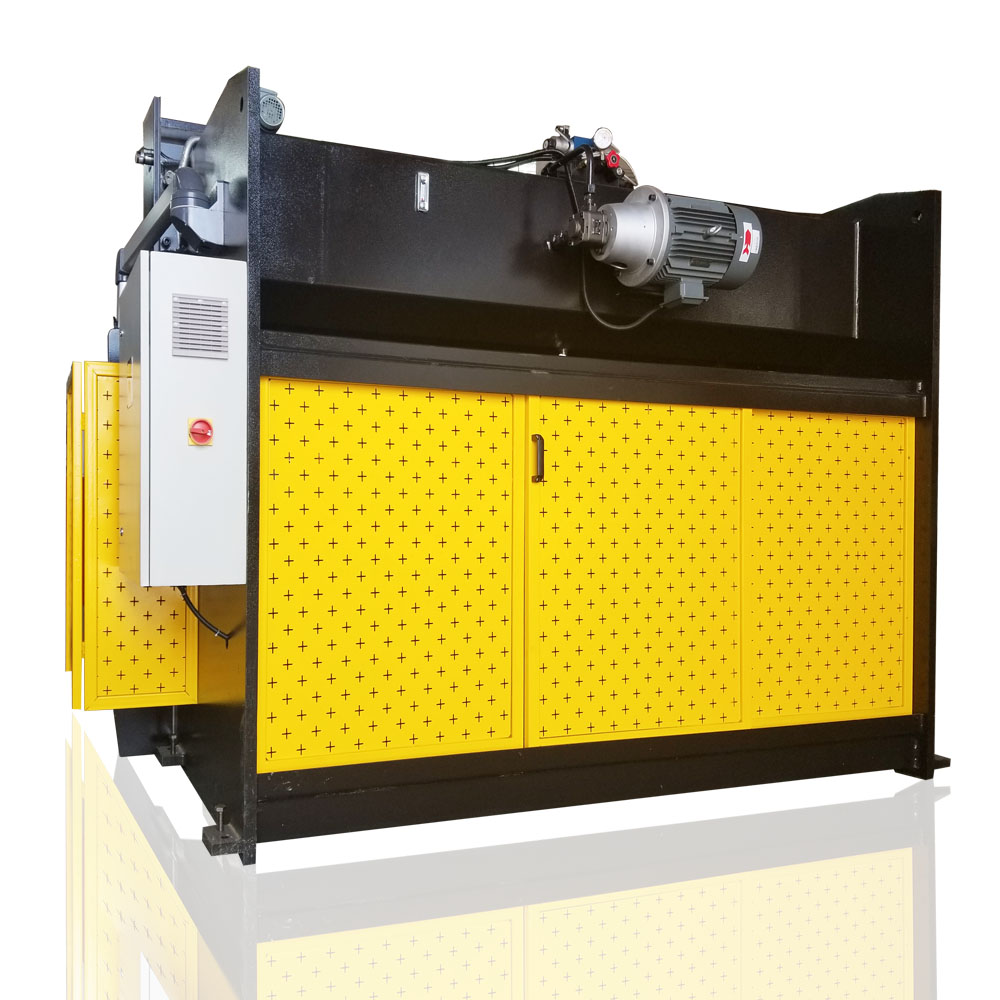

WC67K NC Hydraulic Press Brake- E300 ( X+Y Axis ）

The Torsion Bar Press Brakes are optimal for the forming of parts with a low operation cost. Torsion Bar Press Brakes have Torsion bar synchronous CNC two axis control capability just like our larger Press Brakes.

The entire EU streamlined design, heat treatment frame, high rigidity workbench, optional mechanical compensation device for precise bending.

Hydraulic synchronization control and Estun E300 ensure precise repeatability and ease of use.

The integrated hydraulic system (Bosch Rexroth, Germany) can quickly and automatically switch to a slow bend.

The X-axis and Y-axis are programmed by the controller and controlled by servo motor to achieve accurate positioning.

Advanced variable frequency hydraulic control technology, with more stable, and more reliable operation.

The optimal parameter ratio and optimal core configuration ensure stable performance and convenient operation.

WC67K series press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes.

WC67K-CNC Hydraulic Press Brake E300 Controller The brake press is fitted with intermediate upper clamps to prevent wedging Plate support arms Powered adjustment of axis depth Backstop Light guards Top and bottom tooling Estun E300 CNC control

Torsion Bar NC Press Brake German Bosch-Rexroth hydraulic system Telemecanique/Schneider Electric components Hydraulic and electrical overload protection Squaring arm and front support arms Servo Motor with ball screw and polished rod with 0.05 mm accuracy

E300 CNC Controller frm ESTUN Control function, support X,Y,R axis servo axis control, C axis hydraulic/mechanical compensation two modes optional  Built-in machine control logic, hydraulic valve group free logic configuration, I/O port free configuration function, simplifies the programming calculation of external line  Accurate Angle function, built-in mold base and material list, improved the calculating precision of  Standard USB interface, which can realize parameter program a key  Online backup and system software upgradeStandard EDS/ProNet servo series, superior performance, stable quality  Safety protection, collision detection and collision avoidance R axis positioning function  Built-in parameters a key to backup and restore function, reduce service costs  Micro switch according to the keypad, stable and reliable, long life

Standard Components

• The frame is heavy-duty as well as compact and it assures precise results. It is made of high quality mild steel and it has undergone systematic mechanical processes

• ESTUN E300P NC Control Unit


• Full length multi V die series of 835mm punches with a fractioned one


• Bosch-Rexroth Hydraulic System


• Ram Deflection Adjustment


• X,Y-Axis Servo Motorized Back Gauge


• High Speed Servo Back Gauge


• Mechanical crowning system managed by Manual


• Durmapress Bending Toolings Top & Bottom Tool Clamps


• Electrical cabinet with Telemecanique-Schneider, Esautomotion, ABB components


Siemens Motor  Guarantees the machine service life , and reduce the noise when working

Workbench Linearity Adjustment Linearity of the workbench can be adjusted through screw

Oil Cylinder Jining Taifeng

HIWIN Ball Screw & Guild Linear  High precise backgauge , equipped with Taiwan HIWIN ball screw and polished rod structure

French schneider electrics  To ensure machine stability , and Estun servo drive to control the accuracy of X , Y axes .

Fast Clamp

Hydraulic System

Upper Punch (90°）and Multi-V Die

Adjustable Left & Right / Upper & Down Finger

Durmapress ®  Press Brake Crowning System

The Durmapress® Manual and CNC crowning ensures a constant bend angle across the full length of the machine , This is achieved by pre-loading the machine , to offset any possible deflection under load of compensate for any tool wear , so that under load contacting surfaces are parallel to each other .

With CNC Crowning systems the press brake control is preprogrammed with machine characteristics and deflection data . With Manual crowning a simple spread sheet or chart can be easily developed for each application .

Durmapress® Hydraulic NC Press Brake Optional Parts

• Oil Pump: SAEMP/VOITH/ECKERLE .

• Oil Cylinder: Taifeng

• Main Motor: WNM

• Ball Screw Rod: HIWIN/PMI

• Linear Guide: HIWIN

• Front Support: Steel type support equiped with dual linear guide;

• Aluminum alloy support without dual linear guide;

• Pedal Switch: Roller Support

• Temperature Control Device: Heating Device/Air Cooling Device

• Front Protection: Light Curtain/L aser Protection

• Rear Protection: Light Curtain/Full Protection/Semi-protection

• Toolings: Customized

• Convex Table: Manual/Motorized

• Clamps: Advanced Quick Clamp

• Controller: Delem DA41S, Esa S625, CybTouch 8P

Laser Protection

Oil Cooler

Hydraulic Crowning

Movable Front Support
