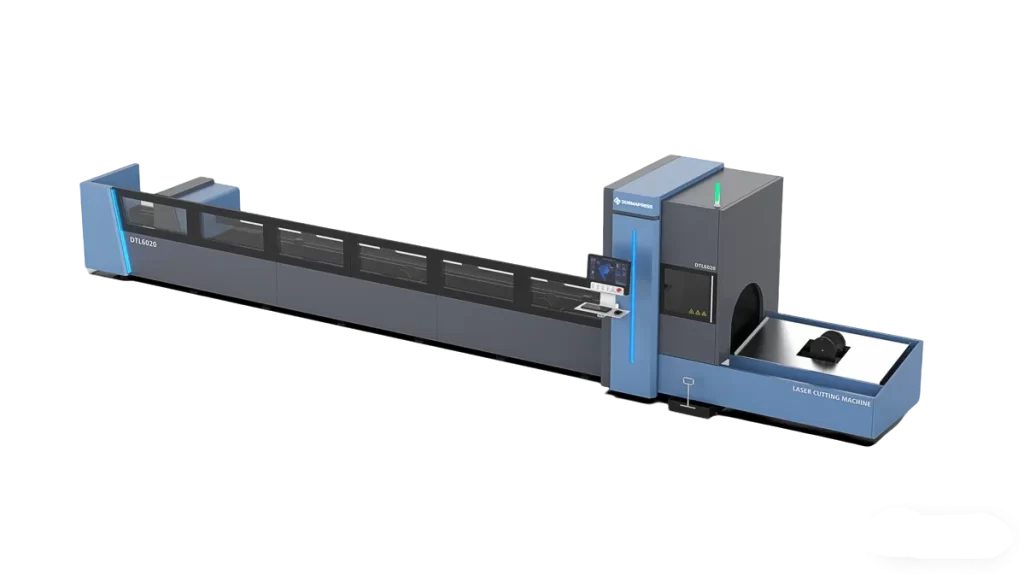

BS-T SERIES
Tube FIBER LASER CUTTING MACHINE
Designed to Deliver Clean, Consistent Tube Cuts.
Más de 5000 fabricantes de todo el mundo confían en nosotros.
Descripción general del producto
Diseñado para ofrecer precisión, eficiencia y fiabilidad en entornos de fabricación modernos.
Tecnología de corte revolucionaria
Our High-Precision Tube Fiber Laser Cutting Machine represents the latest in industrial cutting technology, designed for metal fabrication and machinery manufacturing.
Características técnicas avanzadas
- Dedicated Tube Cutting – Optimized for high-precision tube processing
- Stable Auto Centering – Accurate positioning and cutting
- Fast & Reliable Operation – High rigidity and smooth motion
- Intelligent CNC Control – Consistent cutting quality with easy operation
- Flexible Tube Compatibility – Supports round, square, rectangular, and special-shaped tubes
- Extended Processing Lengths – 6 m and 12 m options for diverse production needs
- Efficient Clamping System – Reduced setup time and improved productivity
Ciclos entre mantenimientos
0
+
Eficiencia energética
0
%
Más rápido
0
%
Ciclo más corto
0
%
Diseño detallado y componentes
Explore la ingeniería de precisión detrás de nuestros sistemas de corte por láser de fibra de la serie BS-E.
Laser Chuck
Since the cylinder is uesd to clamp the workpiece directly,the cylinder working stroke is the chunk working stroke,and the clamping range is wide. With direct cylinder output, the output force is linearly proportional to the air presssure,which is easy to implement software control.
Laser Cutting Head
Lightweight and impact-resistant, designed for medium- and low-power lasers. Built-in intelligent sensors enable real-time monitoring, rapid diagnostics, and stable, efficient cutting.
Controlador
High-end intelligent EtherCAT bus controller designed for high power fiber laser above 8kw.featured by out of box service, easy to install and adjust, full solution
functions,supports custom, automatic and digitization solutions.
Automatic Mechanical Loading System (Option)
The automatic loading system ensures correct tube orientation, precise length positioning, and efficient bundle loading. It supports round, oval, and square tubes up to 120 kg, with fast loading times of ≤ 70 seconds for the first load and ≤ 20 seconds for subsequent loads.
Cypnest Software (Option)
CypNest is a nesting software for CypCut/HypCut laser cutting systems, integrating drawing editing, fast nesting, toolpath generation, and production analysis to improve cutting efficiency and meet diverse production needs.
Cabezal de corte
Customize The Cutting Head For Your BS-E Series
PRECITEC (Option)
Laser cutting head in solid state, high power Precitec PROCUTTER, with capacitive sensor for tracking metallic surfaces and support for focal lens 200mm, with cartridge glass protection
Fuente láser
Customize The Laser Source For Your BS-E Series
- Supports faster cutting speeds and efficient processing of thick and hard materials.
- Delivers consistent output with reduced downtime and maintenance needs.
- Suitable for metals, plastics, ceramics, and composite materials across various industries.
- Ensures accurate cutting with fine details and tight tolerances.
Heavy-duty Tube Laser Cutting Machine with Three Chucks
- High in cutting ability
- Cut with 0 tailing
- Corte de alta precisión
- Need less costs of production
Tube Fiber Laser Cutting Machine With Auto-loading System
- High Structural Accuracy & Stability
- Enhanced Cutting Precision
- Fully Automatic Alignment
- High-Efficiency Center Positioning
Especificaciones técnicas
Diseñado para ofrecer un rendimiento excepcional en una amplia gama de requisitos de fabricación.
| Modelo | BS-12550T | BS-60220T | BS-60350T | BS-80350T |
|---|---|---|---|---|
| Tube Range (Length) | 12000mm | 6000mm | 6000mm | 8000mm |
| Potencia láser | 2KW, 3KW, 6KW, 8KW, 12KW | 2KW, 3KW, 6KW, 8KW, 12KW | 2KW, 3KW, 6KW, 8KW, 12KW | 2KW, 3KW, 6KW, 8KW, 12KW |
| Tube Diameter | 550mm | 220mm | 350 mm | 350 mm |
| X- axis Positioning accuracy | ±0.03 mm/1000 mm | ±0.03 mm/1000 mm | ±0.03 mm/1000 mm | ±0.03 mm/1000 mm |
| Y- axis Positioning accuracy | ±0.03 mm | ±0.03 mm | ±0.03 mm | ±0.03 mm |
| X,Y- axis max positioning speed | 100 m/min | 100 m/min | 100 m/min | 100 m/min |
| Max accelerated speed | 1.0G | 1.0G | 1.0G | 1.0G |
| Voltage | 380V 50HZ 3PH | 380V 50HZ 3PH | 380V 50HZ 3PH | 380V 50HZ 3PH |
| Graphic format supported | CAD. DXF (etc) | CAD. DXF (etc) | CAD. DXF (etc) | CAD. DXF (etc) |
| Working environment | Temp: 0-40℃, humidity: ≤80% No condensation |
Temp: 0-40℃, humidity: ≤80% No condensation |
Temp: 0-40℃, humidity: ≤80% No condensation |
Temp: 0-40℃, humidity: ≤80% No condensation |
Para obtener las especificaciones técnicas completas y las opciones de configuración personalizada
Operational Efficiency Metrics
24181260
2000150010005000
Power Consumption (kWh/h)
Maintenance Interval (hours)
Power consumption and recommended maintenance intervals for different power configurations. Higher power models have longer maintenance intervals despite higher energy consumption.
Why Choose us
Eficacia
Maximize productivity with high-speed cutting and minimized downtime
Reliability
Built with premium components for consistent performance in demanding environments
Support
Comprehensive global service network providing technical assistance and training
Ver el vídeo
Fabricante de equipos punteros de tratamiento de metales
Aplicaciones
Son versátiles y pueden utilizarse en una amplia gama de materiales.
Electrodomésticos
Construcción naval
Kitchenware
Trabajo de metales
Medical equipment
Fabricación de automóviles
¿Listo para transformar su proceso de trabajo con metales?
Obtenga un presupuesto personalizado para sus necesidades específicas y descubra cómo la máquina dobladora puede mejorar la eficiencia de su producción y la calidad de sus productos.
- Consulta gratuita con nuestras expertas.
- Solución personalizada basada en sus requisitos
- Preços Competitivos
- Formación integral y apoyo continuo
- 5-Year Warranty
