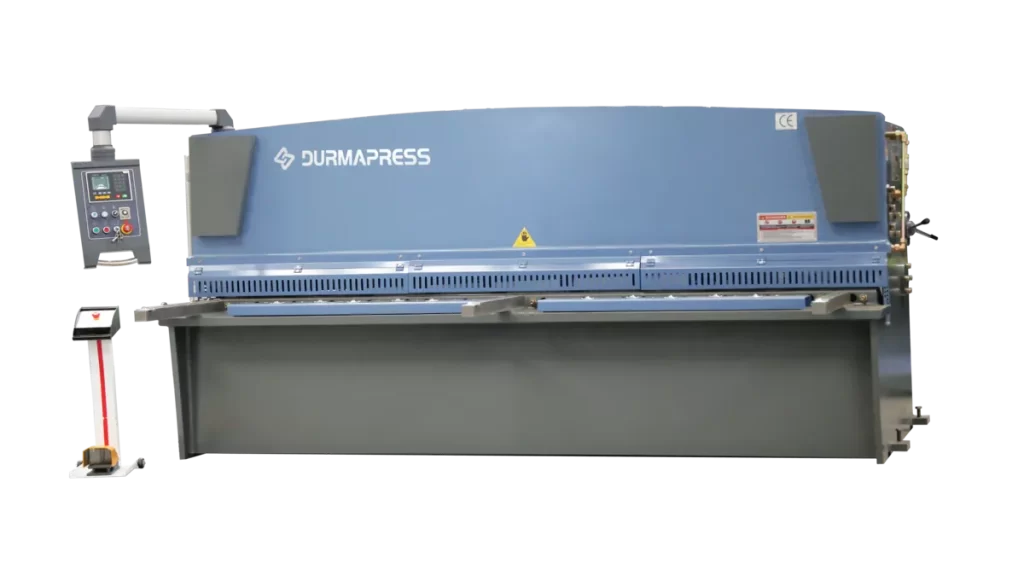

Máquina de corte de vigas oscilantes CNC

Next-generation QC12K CNC shearing for flawless sheet cutting.

Obter um orçamento

Conta com a confiança de mais de 5.000 fabricantes em todo o mundo.

Máquina de corte de vigas oscilantes CNC

Visão geral do produto

Projetado para precisão, eficiência e confiabilidade em ambientes de manufatura modernos.

Máquina de corte de vigas oscilantes CNC

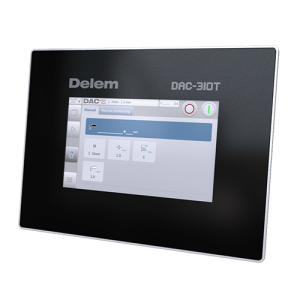

dac-310t
Delem DAC-310T control system

Revolutionary Cutting Technology

The DURMAPRESS cutting-edge shearing machines are designed for precision, durability, and efficiency, providing the perfect solution for your metal fabrication needs.

Recursos Técnicos Avançados

  • Obtenha cortes mais rápidos e de qualidade superior.
  • Estrutura de máquina robusta e duradoura.
  • Ajustes de espaço e ângulo de corte geridos por CNC.
  • Precisão excecional com controlos fáceis de utilizar.
  • Componentes fiáveis de marcas de renome mundial.
  • Soluções de corte económicas.

Sistema de controle intuitivo

Equipped with the industry-leading ESTUN E21S control system featuring:

  • Habitação com base em painéis
  • Controlo do indicador traseiro
  • Função de retração
  • Controlo do ângulo de corte ou da folga
  • Movimento manual dos eixos

Ideal Applications

  • Stainless Steel Kitchenware
  • Precision Sheet Metal
  • Automotive Components
  • Electrical Enclosures
  • Medical Equipment
  • Telecommunication Racks
País exportador
0 +
Taxa de satisfação do cliente
0 /5
Membros profissionais da equipa
0

Projeto Detalhado e Componentes

Explore the precision engineering behind our laser marking systems

QC11K Shearing Machine Frame & Base Structure

Estrutura da Armação e da Base

Robust steel frame construction providing stability and vibration dampening for precision cutting operations.

Knife Adjust

The knife adjustment mechanism precisely controls blade clearance, ensuring clean cuts, reducing blade wear, and preventing material deformation.

Ajuste da faca
Motor

Motor

Motors in shearing machines offer significant advantages, including extended service life, reduced operational noise, and enhanced cutting precision.

Sistema elétrico

The electrical system includes all the electronic components that control and monitor the shearing machine's operations.

Hydraulic Guillotine Shearing Machine Electrical System
Parafuso de esferas

Parafuso de esferas

Ball screws convert rotational motion into precise, efficient linear motion. In a shearing machine, they are mainly used in the back gauge system to ensure accurate material positioning during cutting.

Cilindro de prensa

O cilindro da prensa aplica pressão para manter o material firmemente no lugar durante o processo de corte. Isto evita que o material se mova ou se desloque, assegurando cortes precisos e limpos.

Hydraulic Guillotine Shearing Machine Press Cylinder
Válvula hidráulica

Válvula hidráulica

Hydraulic valves control the flow and pressure of hydraulic fluid, regulating blade movement and ensuring precise, controlled cutting.

Mesas frontais integradas com bolas

These tables use balls or rollers to ensure smooth material movement, enabling accurate positioning under the blade while reducing manual effort and improving cutting precision.

Mesas frontais integradas com bolas

Especificações técnicas

Engineered to deliver exceptional performance across a range of manufacturing requirements

Seri-al NO. Nome Unidade 6x3200 6x4000 8x2500 8x3200 8x4000 8x6000 12x2500 12x3200 12x4000 12x6000 16x2500 16x3200 16x4000 16x6000 20x3200 20x6000
1 Max. Cutting Thickness mm 6 6 8 8 8 8 12 12 12 12 16 16 16 16 20 20
2 Max. Cutting Length mm 3200 4000 2500 3200 4000 6000 2500 3200 4000 6000 2500 3200 4000 6000 3200 6000
3 Strength of sheared plate N/mm² 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450
4 Cutting Angle ° 0.5-2.5 0.5-2.5 0.5-1.5 0.5-2.0 0.5-2.0 0.5-2.5 0.5-2.0 0.5-2.0 0.5-2.0 0.5-3.0 0.5-2.5 0.5-2.0 0.5-2.0 0.5-3.5 0.5-3.5 0.5-3.5
5 Number of strokes Hits/min 6/12 6/12 6/12 6/12 6/12 5/8 6/10 6/10 6/10 6/10 8/12 6/10 8/12 4/8 5/8 5/8
6 Length of Cutter Blade(A) mm 3300 4100 2600 3300 3300 6150 2600 3300 4100 6150 2600 3300 4500 6150 6150 6150
7 Height of working table above the ground (C) mm 10-750 10-750 10-700 10-700 10-750 10-750 10-750 10-750 10-750 10-750 10-750 10-750 10-750 10-750 10-750 10-750
8 Backgauge Range of X Axis mm 10-800 10-800 10-800 10-800 10-800 10-800 10-800 10-600 10-600 10-800 10-800 10-800 10-800 10-800 10-800 10-800
9 Motor principal Type Y132M-4/(B35) Y132M-4/(B35) Y132M-4/(B35) Y132M-4/(B35) Y160M-4/(B35) Y180M-4/(B35) Y180M-4/(B35) Y180M-4/(B35) Y180M-4/(B35) Y180L-4/(B35) Y180M-4/(B35) Y200L-4/(B35) Y180L-4/(B35) Y180L-4/(B35) Y180L-4/(B35) Y225M-4/(B35)
Power(KW) 7.5 7.5 7.5 7.5 11 18.5 18.5 18.5 18.5 22 18.5 30 22 22 30 45
Rotate Speed(R/MIN) 1440 1440 1440 1400 1400 1400 1400 1400 1400 1400 1400 1400 1440 1440 1440 1440
10 Gear Pump Type NBZ3-G25F/CP1-25-P-10R NBZ3-G25F/CP1-25-P-10R NBZ3-G25F/CP1-25-P-10R NBZ3-G25F/CP1-25-P-10R NBZ3-G25F/CP1-25-P-10R NBZ4-G40F/CP1-40-P-10R NBZ4-G40F/CP1-40-P-10R NBZ4-G40F/CP1-40-P-10R NBZ4-G40F/CP1-40-P-10R NBZ4-G63F/CP1-63-P-10R NBZ4-G40F/CP1-40-P-10R NBZ4-G63F/CP1-50-P-10R NBZ4-G50F/CP1-50-P-10R NBZ4-G50F/CP1-50-P-10R NBZ4-G50F/CP1-50-P-10R NBZ4-G80F/CP2-80-P-10R
Norminal Flow(Ml/r) 25 25 25 25 25 40 40 40 40 63 40 63 50 63 63 80
Norminal Pressure(Mpa) 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5
11 Back-gauge motor Type YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134 YS-7134
Power(KW) 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.75
Rotate Speed(R/min) 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400
12 External Dimensions Length(mm) 3700 4500 3000 3800 4500 6500 3100 3800 4500 6800 3100 3900 4600 6800 3900 6800
Width(mm) 1800 1900 1800 1800 1800 2150 1900 1900 1900 2200 2000 2000 2000 2300 2000 2550
Height(mm) 2000 2100 2100 2100 2100 2500 2300 2300 2300 2500 2400 2500 2400 2880 2500 2950
13 Necessidade de energia 380V (-15%,+15%) 50Hz ,3PH

Why Choose us

Estruturas de aço soldadas verificadas

Welded steel construction ensures strength and precision, extending service life, reducing costs, and earning global customer trust.

Capacidade de corte

Handles 6–20mm sheet thickness with 2–6m standard lengths, plus higher cutting capacities for demanding applications.

Marcas globais de componentes

Built with premium global components and expert craftsmanship for reliable performance and long-term durability.

Ver o vídeo

Fabricante de equipamentos de ponta para o processamento de metais

What we support

Fabricante de equipamentos de ponta para o processamento de metais

100% Factory Calibration

Every Durmapress shear undergoes a 48-hour rigorous load test and blade gap precision alignment before shipping to ensure out-of-the-box performance.

Comprehensive Technical Training

We don’t just sell machines; we empower your workforce. Our experts provide deep-dive training on CNC programming, blade maintenance, and safety protocols to maximize your ROI from day one.

Global Deployment Support

Our senior engineers provide on-site installation and mechanical leveling worldwide, ensuring the machine integrates perfectly with your production line.

24/7 Digital Lifecycle Care

Featuring remote diagnostics and a global cloud-based support system. Combined with our rapid-response spare parts warehouse, we minimize your downtime to the absolute limit.

Pronto para transformar o seu processo de metalurgia?

Obtenha um orçamento personalizado para as suas necessidades específicas e descubra como a máquina de quinagem pode aumentar a eficiência da sua produção e a qualidade do produto.

  • Consulta gratuita com os nossos especialistas
  • Solução para suas necessidades
  • Preços e financiamento flexíveis
  • Formação abrangente e suporte contínuo
  • 5-Year Warranty
