Introduction
Backgauge positioning accuracy plays a critical role in sheet metal fabrication. Whether you are operating a travão de prensa or a máquina de corte hidráulico, even small deviations in backgauge movement can lead to dimensional errors, material waste, and inconsistent product quality.
Operators often notice symptoms such as inconsistent bending lengths, repeated positioning offsets, or unstable axis movement. These issues not only affect precision but may also signal underlying mechanical, electrical, or control system problems.Understanding the relationship between the ram, tooling, hydr。aulic system and backgauge is essential when diagnosing positioning faults. See our guide to [how a CNC press brake works] for an overview of the machine’s main movements and control systems.
This guide explains the most common backgauge positioning problems, their root causes, and how to troubleshoot them effectively.
Common Symptoms of Backgauge Positioning Problems
Before diagnosing the issue, it is important to recognize the typical warning signs:
- Backgauge does not stop at programmed position
- Position deviation increases over time
- Sudden offset after machine restart
- Axis alarm or encoder error message
- Backgauge movement is noisy, vibrating, or unstable
- Inconsistent bending or cutting dimensions
These symptoms usually indicate problems related to mechanical wear, servo systems, feedback devices, or CNC parameters.
How to Read the Error Pattern Before Adjusting the CNC
Do not start by changing an axis offset. First record how the error behaves. The pattern often shows whether the problem is a reference offset, a progressive travel error, or localized mechanical damage.
- Uniform error: The same offset appears at the front, middle and rear positions. This usually points to a reference offset or a backgauge beam that is positioned incorrectly.
- Progressive error: The error increases or decreases as the backgauge travels along the X-axis. This commonly indicates rail misalignment, ball-screw wear, backlash or a twisted mounting path.
- Spot-specific error: The reading changes irregularly, such as a large error at one position and a smaller error elsewhere. Possible causes include a damaged finger block, a worn bearing section, a damaged guide or a local obstruction.
- Direction-dependent error: The position changes when the gauge approaches the same target from opposite directions. This is a strong indication of backlash, loose couplings, worn thrust bearings or a worn ball screw rather than a simple calibration offset.
Measure at more than one travel position before editing the program. A software offset can hide a local mechanical fault and may make another job inaccurate after the damaged component is repaired or replaced.
Backgauge Axis Functions
| Axis | Main movement | Why it matters |
|---|---|---|
| X | Forward and backward movement | Sets flange depth from the tooling |
| R | Up and down movement | Adapts finger height to tooling and material conditions |

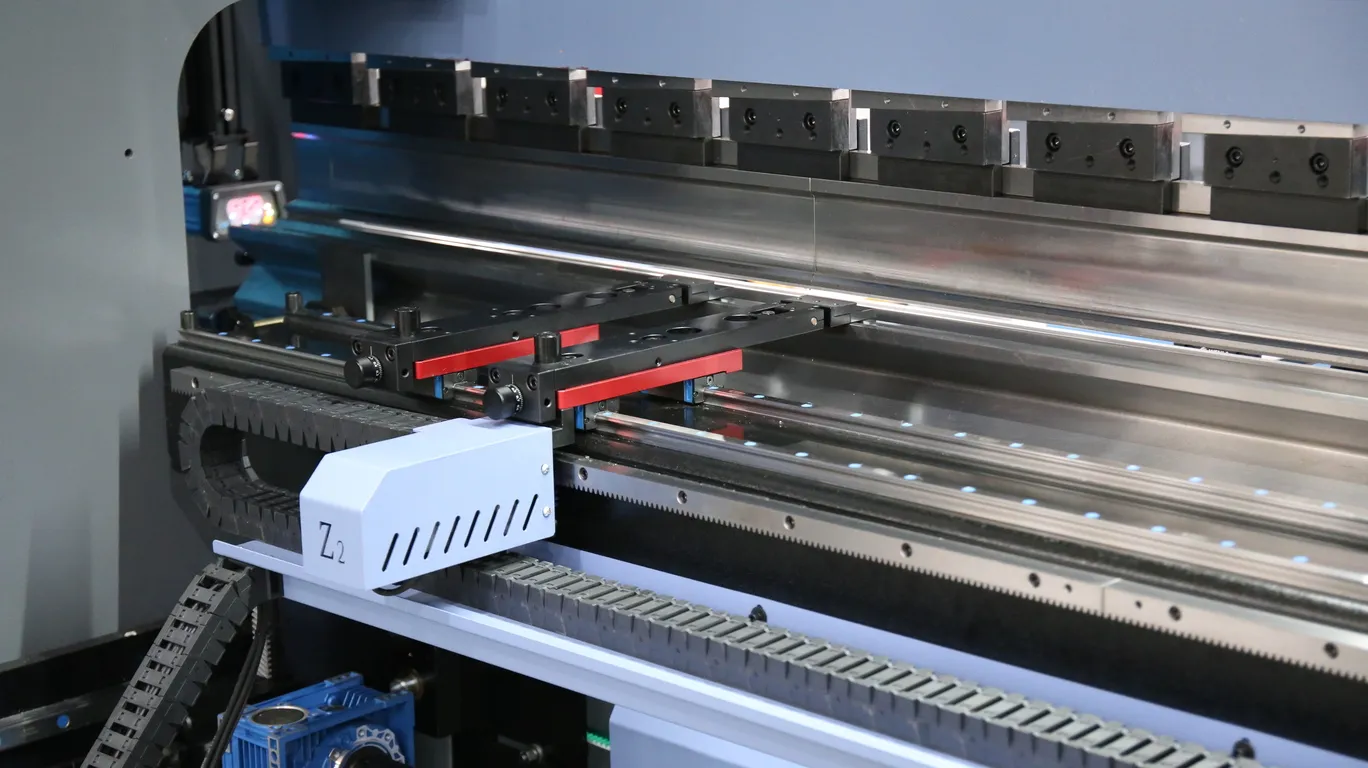

| Z1/Z2 | Independent left-right finger movement | Supports long, asymmetrical or multi-point workpieces |
Not every press brake has every axis. If a part requires independent finger support that the current backgauge cannot provide, repeated manual offsets may indicate a configuration limit rather than a calibration fault.
Symptoms-to-Cause Diagnostic Table
| Symptom | More likely cause | First area to inspect |
|---|---|---|
| Same offset at every position | Calibration or reference offset | Home reference, beam squareness and CNC compensation |
| Error increases toward the rear of travel | Rail misalignment, backlash or ball-screw wear | Full X-axis travel, guides and transmission |
| Error changes with approach direction | Mechanical backlash | Ball screw, coupling, thrust bearing and drive nut |
| Left and right fingers disagree | Finger alignment, Z-axis or beam squareness | Finger blocks, beam and Z-axis movement |
| Display is stable but finger is not | Mechanical play | Mounting, bearings, guides and transmission |
| Display and finger position both jump | Encoder, cable, drive or electrical issue | Feedback cable, connector, encoder and drive |
| Parts shift only during forming | Material movement or tooling condition | Sheet contact, die shoulders and tooling seating |
Root Causes of Backgauge Positioning Errors
Backgauge inaccuracies rarely stem from a single cause. In most cases, they result from a combination of mechanical, electrical, and control factors.
1. Mechanical Issues
Mechanical problems are one of the most frequent causes of positioning errors.
Typical mechanical faults include:
- Ball screw backlash or wear
- Loose couplings or bearings
- Worn linear guide rails
- Backgauge finger collision damage
- Misalignment of the axis
Even minor looseness in the transmission system can lead to measurable positioning deviation.
2. Servo Motor or Drive Problems
Modern backgauges rely on servo motors for precise positioning. Servo-related faults may cause:
- Irregular movement
- Position drift
- Axis vibration
- Overheating alarms
Common servo causes:
- Incorrect servo tuning
- Drive parameter instability
- Motor overheating
- Brake malfunction
3. Encoder or Feedback Failure
Encoders provide position feedback to the CNC system. When feedback is compromised, the machine loses positioning reliability.
Possible issues:
- Encoder contamination
- Signal cable loosened
- Electrical interference
- Feedback loss or noise
Encoder-related failures often result in random or inconsistent positioning errors.
4. CNC Control or Parameter Errors
Incorrect parameter settings can directly affect backgauge accuracy.
Examples:
- Wrong compensation values
- Incorrect axis calibration
- Improper homing reference
- Software glitch
Parameter errors may cause consistent offset rather than random deviation.
5. Electrical and Wiring Problems
Electrical instability can disrupt servo and feedback systems.
Potential causes:
- Poor grounding
- Damaged cables
- Loose connectors
- Voltage fluctuation
- Electrical noise
Three-Position Measurement for Backgauge Accuracy
A single measurement cannot show how the backgauge behaves across its travel range. Check the gauge at three positions:
- Retracted position: Check the gauge near the front of its usable travel.
- Mid-travel position: Check the area where the machine performs most production work.
- Advanced position: Check the far end of the normal travel range.
At each position, use the same reference surface and record the left-to-right deviation between the fingers. Do not change the reference, tooling or measurement direction between readings.
| Measurement result | Most likely direction | First response |
|---|---|---|
| Same deviation at all three positions | Reference offset or beam squareness | Verify the mechanical reference before changing CNC offsets |
| Deviation increases with travel | Rail twist, foundation misalignment or progressive backlash | Inspect guides, mounting points, ball screws and bearings |
| Deviation changes irregularly | Local finger, bearing or guide damage | Inspect the affected finger block and local components |
| Different result from opposite directions | Backlash or loose transmission components | Test the ball screw, couplings, thrust bearings and drive nuts |
The purpose of this check is not to create a new software correction for every position. It is to determine whether the error belongs to the reference, the travel path or a local component.
Step-by-Step Troubleshooting Process
A systematic diagnostic approach prevents unnecessary part replacement and downtime.
Step 1 – Check Mechanical Stability
Inspect all mechanical transmission components:
✔ Check ball screw backlash
✔ Inspect couplings and bearings
✔ Examine linear guide rails
✔ Look for collision damage
✔ Verify axis alignment
If looseness or wear is detected, mechanical adjustment or replacement may be required.
Check the Tooling Reference Before Correcting the Backgauge
A backgauge can be square to the machine frame and still be incorrectly aligned with the actual bending line. The punch and die form the sheet; the painted side frame does not. Before making a backgauge adjustment:
- Remove scale, chips and dirt from the bed and die holder;
- Check the punch tang and die seating surfaces for burrs or damage;
- Reseat the tooling in the position used for the measurement;
- Confirm that the punch and die are properly clamped;
- Check whether the ram and tooling remain parallel across the working width;
- Repeat the backgauge measurement after the tooling has been cleaned and reseated.
If the reference plane changes when the tooling is cleaned or reseated, the original backgauge reading was not a reliable calibration baseline. Do not compensate for a tilted die, worn holder or non-parallel ram by changing the X-axis offset.
Because the punch and die define the actual bending line, tooling condition must be verified before the backgauge is recalibrated. Learn more about [press brake tooling alignment and setup].
Step 2 – Verify Servo Motor & Drive Status
Review servo system behavior:
✔ Check servo alarms
✔ Monitor motor temperature
✔ Observe movement smoothness
✔ Evaluate vibration or noise
If necessary, perform servo tuning or parameter reset.
Separate Servo Tuning Problems from Mechanical Backlash
Servo tuning and mechanical backlash can produce similar symptoms, but they require different solutions. A tuning problem may cause hunting, overshoot, vibration or unstable settling at the target position. Backlash usually appears as a different result when the gauge approaches the same position from opposite directions.
To separate the two conditions, command the backgauge to the same target several times from the same direction and record the result. Then approach the target from the opposite direction and compare the readings. If the result changes with travel direction, inspect the mechanical transmission before changing servo gains.
Check the following components when direction-dependent error is present:
- Ball screw and ball nut;
- Coupling and shaft connection;
- Thrust bearings;
- Linear guide blocks;
- Drive belt or gear connection, where fitted;
- Finger-block mounting and side play.
Only tune the servo after the mechanical transmission is tight, lubricated and correctly aligned. Servo tuning cannot remove clearance in a worn ball screw or a loose coupling.
Step 3 – Test Encoder Feedback
Evaluate feedback reliability:
✔ Check repeatability of positioning
✔ Inspect encoder cable shielding
✔ Look for signal instability
✔ Verify connector tightness
If errors persist, encoder cleaning or replacement may be needed.
Check Repeatability, Not Only the Displayed Position
An encoder can report a position that looks correct while the mechanical finger still has play. For this reason, compare the commanded position, the displayed position and the measured position at the finger.
Repeat the same move several times and record whether the finger returns to the same physical point. Then repeat the test after approaching from the opposite direction.
- Stable display, unstable physical position: likely mechanical backlash, loose mounting or transmission wear;
- Unstable display and unstable physical position: likely encoder, wiring, drive or electrical interference;
- Stable position at one X value but increasing error over travel: likely rail, screw or alignment problem.
This distinction helps prevent operators from replacing an encoder when the actual fault is mechanical clearance in the drive system.
Step 4 – Review CNC Parameters
Incorrect CNC settings frequently cause positioning offsets.
✔ Check backgauge compensation
✔ Verify axis calibration
✔ Confirm homing reference
✔ Restore default parameters if required
When Calibration Is Enough—and When It Is Not
Calibration is appropriate when the backgauge is mechanically sound but the controller reference no longer matches the actual finger position. It may be required after a collision, machine relocation, replacement of a finger assembly, major tooling change or verified mechanical adjustment.
Calibration alone is unlikely to solve the problem when:
- Ball screws, guide rails or bearings have measurable play;
- The error changes across the travel range;
- The error changes with travel direction;
- A finger block or beam is physically bent;
- The controller repeatedly loses its home reference;
- The available backgauge axes cannot support the part geometry;
- Operators must add manual offsets to nearly every program.
In these cases, repair the mechanical or electrical cause first. Do not use a permanent CNC offset to conceal a damaged finger, worn transmission or misaligned rail.
Step 5 – Inspect Electrical System
Ensure electrical stability:
✔ Check grounding quality
✔ Inspect cable integrity
✔ Verify power supply stability
✔ Eliminate electrical interference
Practical Fixes & Solutions
Preventive care significantly reduces backgauge failures.
✔ Regular lubrication of ball screws and guide rails
✔ Periodic axis accuracy verification
✔ Collision inspection
✔ Servo parameter check
✔ Encoder cleaning
✔ Cable condition monitoring
Well-maintained backgauges ensure consistent precision and longer component lifespan. For a broader inspection and service routine, see our guide to [press brake maintenance].
Check Whether the Material Is Moving During the Bend
Not every uneven flange is caused by backgauge positioning. The sheet can move after it contacts the fingers if the material is oily, the die shoulders are worn or uneven, the tooling is not seated correctly, or the bending force is not distributed evenly.
To separate material movement from a gauge fault, place the sheet against both fingers and lower the ram to a light pinch without completing the bend. Confirm that the sheet remains in even contact with the fingers.
If the sheet is correctly positioned at the pinch point but moves during forming, inspect the material surface, grain direction, die condition and tooling setup before changing the backgauge position.
Daily Repeatability Check for Early Drift Detection
A short daily check can identify backgauge drift before a production batch is rejected. Use the same reference block, indicator or verified test piece each time and record the result.
Recommended routine:
- Check the gauge at a short, commonly used position;
- Record the left-to-right deviation between the fingers;
- Move the gauge to a longer position and repeat the measurement;
- Return to the original position and check whether the reading returns to the baseline;
- Record the machine temperature, position, deviation and any unusual noise;
- Stop production if the result changes materially from the approved baseline.
A repeatability log is more useful than a single pass/fail check because it shows whether the error is stable, progressive, temperature-related or developing after a collision.
Calibration vs. Repair vs. Retrofit
| Situation | Recommended action |
|---|---|
| One stable offset with no mechanical play | Verify the reference and calibrate |
| Error changes across travel | Inspect the rail, ball screw and alignment before calibration |
| Error changes with direction | Repair backlash or loose transmission components |
| Finger block is bent or damaged | Replace or mechanically reset the component |
| Controller repeatedly loses home reference | Diagnose encoder, wiring, drive and CNC control |
| Machine lacks required Z or R-axis capability | Evaluate a backgauge upgrade or retrofit |
| Frame, hydraulics and electrical system are broadly compromised | Compare retrofit cost with machine replacement |
When Should You Contact Technical Support?
Professional assistance is recommended when:
- Position deviation persists after calibration
- Servo or encoder alarms repeat
- Mechanical wear is suspected
- Axis drift affects product quality
- Backgauge movement becomes unstable
Timely technical support can prevent costly downtime and scrap.
Our engineers can assist with:
- Remote diagnostics
- CNC parameter optimization
- Encoder and servo troubleshooting
- On-site inspection and calibration
Conclusão
Backgauge positioning problems can severely impact sheet metal accuracy, productivity, and machine reliability. Most issues originate from mechanical wear, servo instability, encoder failure, or CNC parameter errors.
A structured troubleshooting process helps identify the true cause and implement the correct solution. Combined with preventive maintenance, this approach ensures stable backgauge performance and consistent fabrication precision.
FAQ – Backgauge Positioning Troubleshooting
Q1: Why does my backgauge lose accuracy after machine restart?
This may result from improper homing reference, encoder feedback instability, or CNC parameter drift. Recalibration and encoder inspection are recommended.
Q2: Can encoder failure cause random positioning errors?
Yes. Faulty or contaminated encoders often produce inconsistent feedback signals, leading to unpredictable positioning deviation.
Q3: How often should backgauge calibration be performed?
For high-precision production, calibration is typically recommended every 3–6 months or after mechanical maintenance.
Q4: Does ball screw wear affect positioning accuracy?
Absolutely. Ball screw backlash or wear directly causes positioning deviation and repeatability errors.
Q5:Why is the backgauge accurate at one position but wrong at another?
A backgauge that is accurate at one position but inaccurate at another may have rail misalignment, ball-screw wear, backlash or a local guide problem. Measure the gauge at the retracted, midpoint and advanced positions. If the error increases with travel, inspect the mechanical path before changing the CNC offset.
