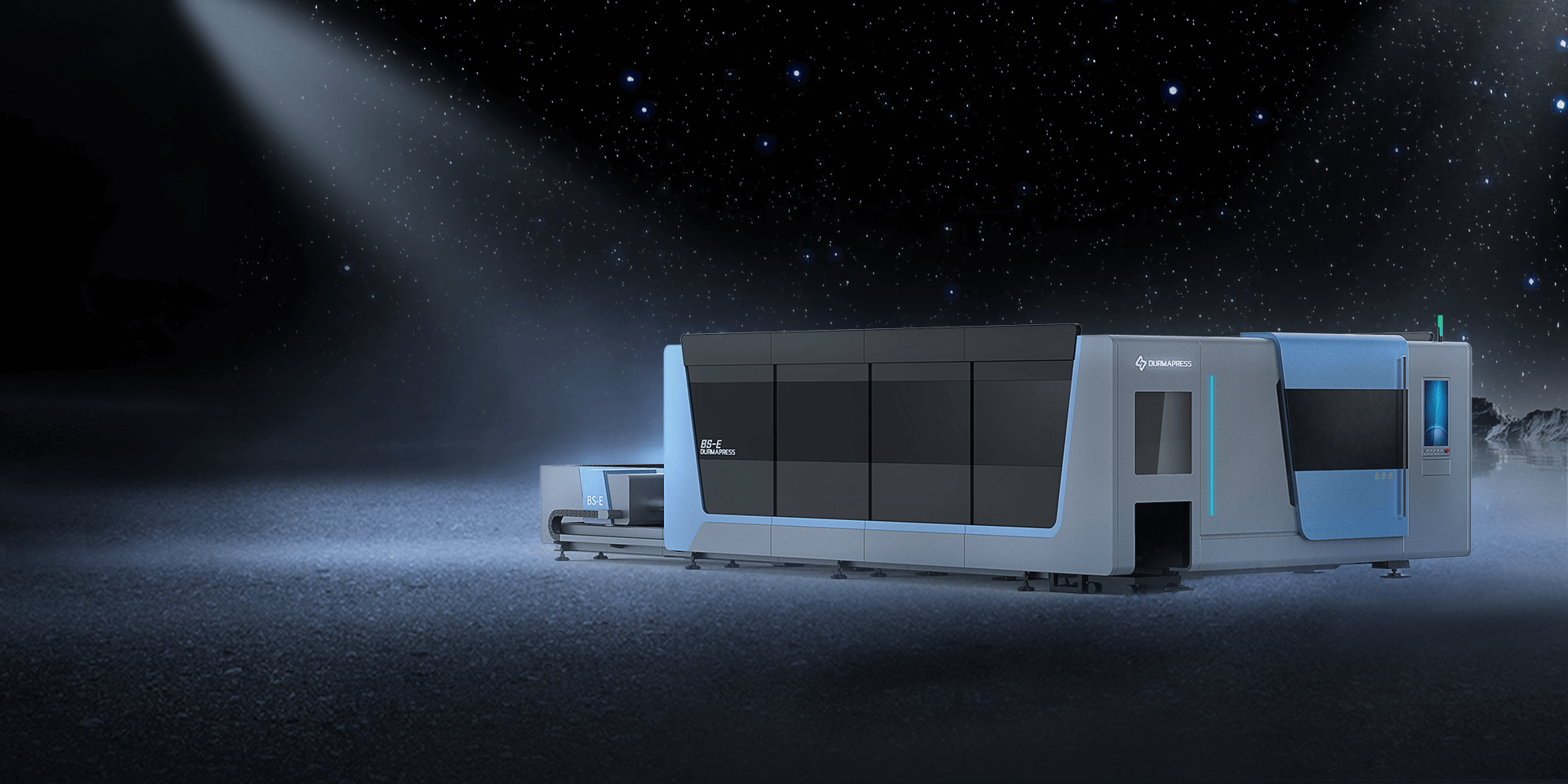

СЕРИИ BS-E
СТАНОК ДЛЯ ЛАЗЕРНОЙ РЕЗКИ ВОЛОКНА
High efficiency and energy saving, capable of manufacturing complex workpieces.
Более 5000 производителей по всему миру доверяют нам
Обзор продукта
Разработано для обеспечения точности, эффективности и надежности в условиях современного производства.
Революционная технология резки
Наш высокоточный станок для волоконной лазерной резки воплощает в себе новейшие технологии промышленной резки и предназначен для металлообработки и машиностроения.
Передовые технические характеристики
- Sheet & Tube in One – One machine for both sheet and tube cutting
- Full Enclosure Safety – CE-compliant, clean and safe operation
- High Rigidity Structure – Stable, precise, and reliable cutting
- Fast Mode Switching – Reduced downtime, higher efficiency
- Space & Cost Saving – Lower investment and operating costs
- Exchange Worktable – Enables continuous loading and unloading during cutting, reducing downtime and improving productivity.
Циклы между техническим обслуживанием
0
+
Энергоэффективность
0
%
Быстрее
0
%
Сокращенный цикл
0
%
Детальное проектирование и компоненты
Ознакомьтесь с высокоточными инженерными решениями, лежащими в основе наших систем лазерной резки волоконным лазером серии BS-E.
Laser Chuck
Since the cylinder is uesd to clamp the workpiece directly,the cylinder working stroke is the chunk working stroke,and the clamping range is wide. With direct cylinder output, the output force is linearly proportional to the air presssure,which is easy to implement software control.
Laser Cutting Head
Lightweight and impact-resistant, designed for medium- and low-power lasers. Built-in intelligent sensors enable real-time monitoring, rapid diagnostics, and stable, efficient cutting.
Панель управления
High-end intelligent EtherCAT bus controller designed for high power fiber laser above 8kw.featured by out of box service, easy to install and adjust, full solution
functions,supports custom, automatic and digitization solutions.
Чиллер
It is a device that provides cooling for the resonator and the optics in the cutting head. lt features a water-based coolingsystem.Thanks to the dual-chamber system, cooling water at different temperatures is delivered to the optics and the laser power supply according to their needs.
Exchange worktable
The exchange worktable allows simultaneous cutting and material loading/unloading, minimizing downtime and increasing productivity. With fast and stable table switching, it ensures efficient, safe, and continuous operation for high-volume cutting tasks.
Fully Annealed Semi-hollow Frame
Durmapress steel frames are annealed at over 600° to relieve internal stress.This ensures they can withstand heavy use without distortion.
The advanced semi-hollow bed design dissipates more heat than competitors and prevents deformation.
6 Cell Vacuum & Filter System
The vacuum and filter system improves cutting quality, protects health, and keeps the machine clean. The cutting area is divided into vacuum cells that open and close automatically with the movement of the cutting head, ensuring efficient and continuous suction.
Cypnest Software
CypNest is a nesting software for CypCut/HypCut laser cutting systems, integrating drawing editing, fast nesting, toolpath generation, and production analysis to improve cutting efficiency and meet diverse production needs.
Режущая головка
Customize The Cutting Head For Your BS-E Series
PRECITEC (Option)
Laser cutting head in solid state, high power Precitec PROCUTTER, with capacitive sensor for tracking metallic surfaces and support for focal lens 200mm, with cartridge glass protection
Источник лазерного излучения
Customize The Laser Source For Your BS-E Series
- Supports faster cutting speeds and efficient processing of thick and hard materials.
- Delivers consistent output with reduced downtime and maintenance needs.
- Suitable for metals, plastics, ceramics, and composite materials across various industries.
- Ensures accurate cutting with fine details and tight tolerances.
Automatic Loading & Unloading System
The system integrates robotic loading/unloading arms with a sheet metal warehouse and laser cutting machine to achieve fully automated sheet storage and handling, improving efficiency and reducing costs.
High-load vacuum suction cups with zoning control and imported pumps ensure stable performance. Sheet-shaking and thickness-detection mechanisms automatically separate adhered sheets, and if separation fails twice, the system alarms for manual intervention.
Coil Fed Blanking & Laser Cutting Line
Coil Fed Blanking & Laser Cutting Line is an advanced manufacturing process that combines the efficiency of coil-fed material handling with the precision of laser cutting.
Instead of using pre-cut sheets, this coil fed laser system feeds metal directly from a coil, flattens it, and cuts it into custom shapes — all in a continuous, automated line.
Laser Isse coil-fed laser blanking lines feature enhanced efficiency, precision, cost-effectiveness, versatility, and sustainability compared to traditional methods.
Технические характеристики
Разработано для обеспечения исключительной производительности при решении широкого спектра производственных задач.
| Модель | BS-3015E | BS-4020E | BS-6020E |
|---|---|---|---|
| Working Area | 1530mm*3050mm | 2040mm*4050mm | 2040mm*6050mm |
| Мощность лазера | 2KW,3KW,6KW,8KW,15KW,20KW,30KW | 2KW,3KW,6KW,8KW,15KW,20KW,30KW | 2KW,3KW,6KW,8KW,15KW,20KW,30KW |
| Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeatability Accuracy | ±0,02 мм | ±0,02 мм | ±0,02 мм |
| Loading Capacity | 2500kg | 4000kg | 6000kg |
| Palette to Palette Change Time | 25s | 30s | 45s |
| Voltage | 380V | 380V | 380V |
| X,Y Axes Max Acceleration | 2G | 1.7G | 1.7G |
| Z Axis Max Acceleration | 2G | 2G | 2G |
| X,Y Axes Positioning System | Rack System | Rack System | Rack System |
| Z Axis Positioning System | Шарико-винтовая пара | Шарико-винтовая пара | Шарико-винтовая пара |
| Max X,Y Axis Speed | 120 м/мин | 120 м/мин | 120 м/мин |
| Max Resultant Speed | 170m/min | 170m/min | 170m/min |
| Max Z Axis Speed | 50m/min | 50m/min | 500m/min |
| Gas Pressure Range | Oxygen: 0-10bar, Nitrogen: 0-25bar, Air: 10-25bar | Oxygen: 0-10bar, Nitrogen: 0-25bar, Air: 10-25bar | Oxygen: 0-10bar, Nitrogen: 0-25bar, Air: 10-25bar |
Для получения полных технических характеристик и информации о вариантах индивидуальной конфигурации
Operational Efficiency Metrics
24181260
2000150010005000
Power Consumption (kWh/h)
Maintenance Interval (hours)
Power consumption and recommended maintenance intervals for different power configurations. Higher power models have longer maintenance intervals despite higher energy consumption.
Why Choose us
Эффективность
Maximize productivity with high-speed cutting and minimized downtime
Reliability
Built with premium components for consistent performance in demanding environments
Support
Comprehensive global service network providing technical assistance and training
