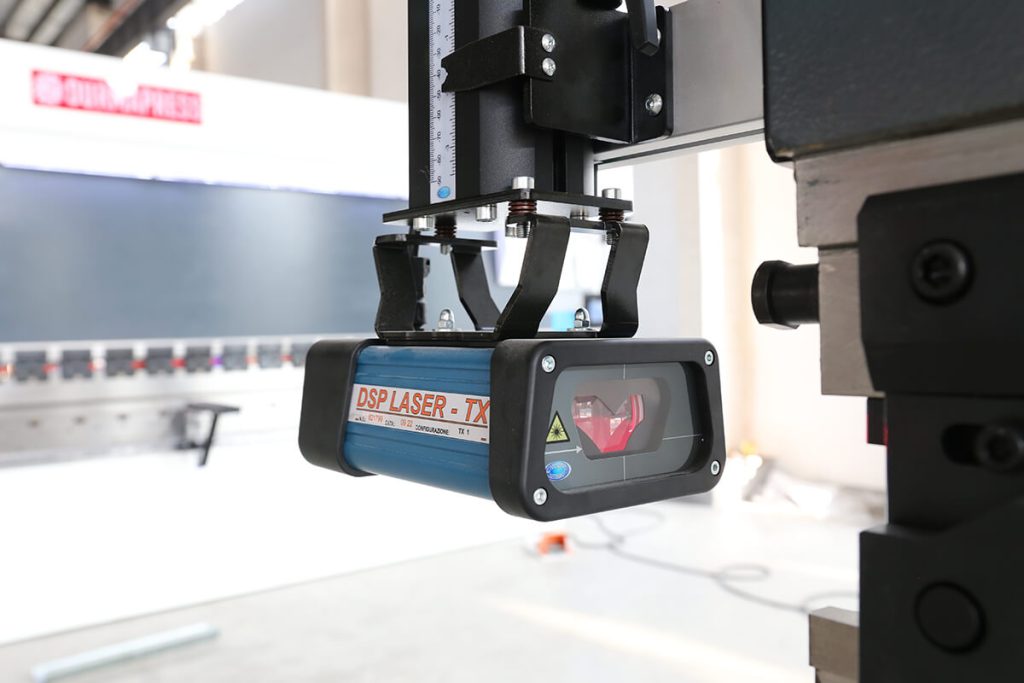

The protection area of safety device for press brake is fixed under the cutting edge and moves synchronously with the upper slider,to ensure any object must enter the protection area before touching the cutting edge when the press brakes approach in high-speed.Once an obstruction (such as worker's finger) enters the protection area, DSP will immediately make signal and interrupt the slider downward movement , which can protect the operator personal safety.
For the high-end press brakes, the main technical features is following:
The photoelectrical safety device MSD is a single beam barrier with emission of visible laser which, within a more general control system, contributes to the protection of the operator in the use of machinery including dangerous mobile parts controlled by electric or electro-mechanical devices. Main task of MSD is to detect, within the limits defined by the device detection capability, the intrusion of any opaque physical elements inside the area defined as “detection area”, which is defined by the point of the emission of the laser beam generated by the transmitter up to the point of reception of the receiver of this device. The tool has been designed to disconnect, in case of danger, the power supply of the machine control devices and/or to activate functions which stop the motion of the dangerous parts.
For the high-end press brakes, the main technical features is following:
As the slider moves up and down, it can provide protection for the operator in extremely close places. With laser light source, it can detect objects as small as 4mm and allow vibration deviation. Redundant design, dual-channel PNP output, safe and reliable; With EDM function, it can realize the monitoring of double valves
For the high-end press brakes, the main technical features is following:
The BLPS bending machine protection device is a safety level 4 photoelectric protection device designed and developed for the personal safety protection of hydraulic bending machines. The BLPS bending machine protection device is located in the protection area of the die tip attachment device of the upper die of the bending machine. It provides effective safety protection for the operator's arms and fingers near the die tip area. It takes into account both the safety of the operator and the production efficiency of the machine, and is currently the most effective solution.
