A protective enclosure located at the back of the machine, designed to shield internal components, enhance safety, and provide a clean, organized appearance.

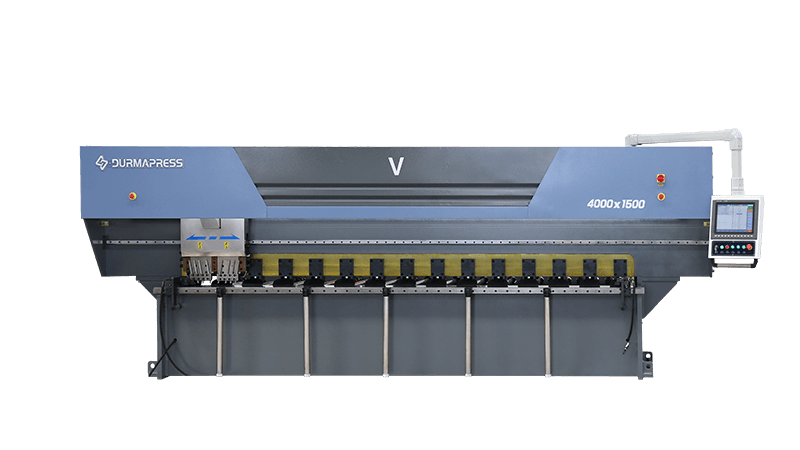

Vertical V Groover Machine
Discover high-precision Vertical V Groover Machines for stainless steel, aluminum, and metal panels. Ideal for decorative grooving with clean, sharp angles.
Trusted by 5000+ manufacturers worldwide
Product Overview
Engineered for precision, efficiency, and reliability in modern manufacturing environments
Revolutionary Technology
The DURMAPRESS Vertical V Groover Machine are designed for precision, durability, and efficiency, providing the perfect solution for your metal fabrication needs.
Advanced Technical Features
- Using Abel's CNC system, our products are mature and reliable.
- Original electrical components from French Schneider ensure circuit longevity and stability.
- Taiwan Yuken’s hydraulic control system automates pressing and releasing with stable and reliable pressure.
- Servo motor feeds with high precision and reliability, up to 0.01mm.
- Servo motor controls both the tool post and feeding device for accurate planing and positioning.
- Touch screen enables quick and clear command input.
- Upgraded to imported alloy steel rack and pinion transmission for lower noise, easier maintenance, fewer failures, and more stable operation.
- Automatic spray cooling extends cutter life.
Exporting country
0
+
Customer satisfaction Rate
0
/5
Professional team members
0
Detailed Design & Components
Explore the precision engineering behind Horizontal V Groover Machine

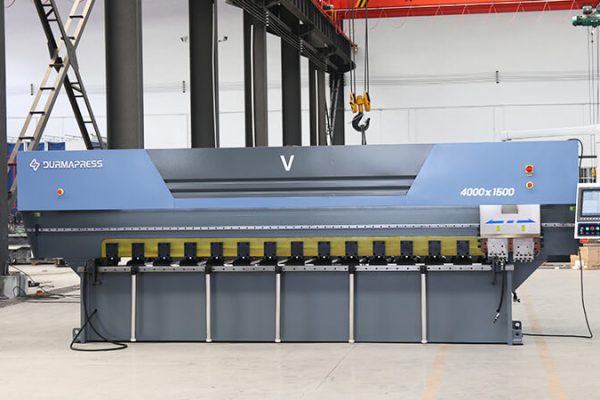

Machine Frame
A rigid, high-strength structure that ensures stability, minimizes vibration, and supports precise grooving performance during operation.

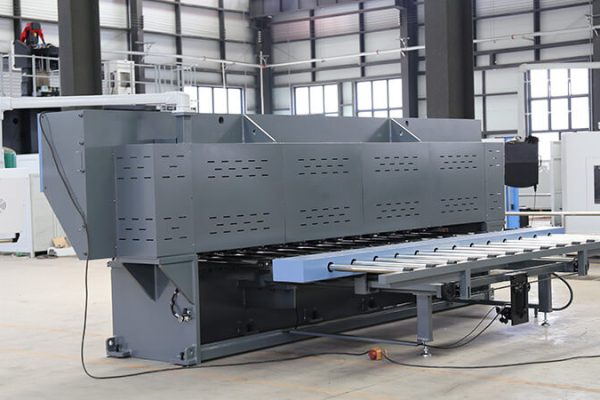

Rear Sheet Metal Cover

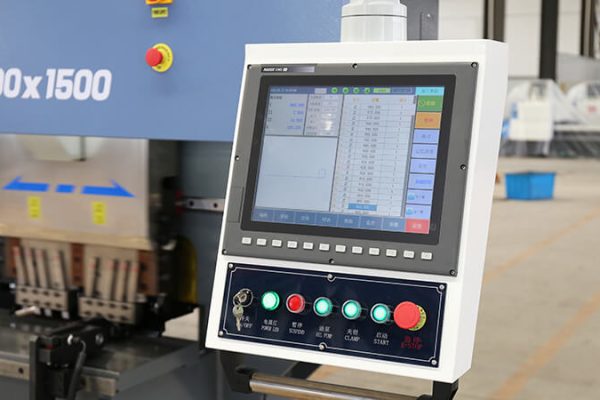

Control Panel
An intuitive interface that allows operators to set parameters and monitor the grooving process with precision and ease.
Backguage
Blade
Blades for CNC V Grooving Machines is essential for optimizing performance, ensuring precision, and maintaining the durability of both the machine and the blades.
Clamping Device
Why Choose us
High Precision and Accuracy
CNC V Grooving Machines are known for their exceptional precision, ensuring accurate grooves and cuts. The computer-controlled system allows for exact measurements and consistent results, minimizing errors and material waste.
Versatility
These machines can handle a wide range of materials, including stainless steel, aluminum, copper, and other metals. They are versatile enough to be used in various industries such as aerospace, automotive, architecture, and electronics.
Increased Efficiency
CNC technology automates the grooving process, significantly reducing manual labor and increasing productivity. The machines can operate continuously with minimal supervision, leading to faster turnaround times and higher output.
Reduced Material Waste
The precision of CNC V Grooving Machines means that material waste is minimized. The exact cutting and grooving reduce the likelihood of errors that could lead to costly rework or material loss.
Improved Safety
CNC machines are designed with safety features that protect operators from potential hazards. Automated processes reduce the need for manual handling of materials, lowering the risk of accidents and injuries.
Complex and Intricate Designs
Creating complex and intricate designs becomes much easier. The advanced software allows for detailed programming, enabling the production of sophisticated patterns and shapes that would be difficult to achieve manually.
Technical Specifications
Engineered to deliver exceptional performance across a range of manufacturing requirements
Technical Data
Main Components
| Model | DMK-1500*4200 | |
| Machining Capacity | Material | Stainless steel, ordinary iron plate, copper, etc. |
| Length | 4200 | |
| Width | 8-1500mm | |
| Thickness | 0-8mm | |
| Minimum edge | White steel knife 8mm Alloy knife10mm | |
| Weight | 12000Kg | |
| CNC Specifics | Control Type | 4 Axis CNC Control (X, Y, Z) |
| Display | 15 inch HD LCD touch screen | |
| Memory Capacity | 99 groups, 9999 channels/group (99 channels can be cycled) | |
| Working System | Ball screw / linear guide / rack and pinion | |
| Machining Speed | Forward-Cutting (X axis) | 4-38M / min |
| Backward (X axis) | 4-120M / min | |
| Tool holder (Y1 axis) (Y2 axis) | 0.5M / min | |
| Feeding (Z-Axis) Z-Axis | 6M / min | |
| Machining Precision | Front and rear of planing head (X axis) | 0.5mm |
| Tool holder up and down (Y axis) | 0.01 | |
| Tube width (Z axis) | 0.02mm | |
| Driving Mode | Planer head (X axis) | 5KW Mitsubishi Servo Motor |
| Tool post moves up and down (Y axis) | 0.4KW Mitsubishi Servo Motor | |
| Feeding (Z axis) | 1KW Mitsubishi Servo Motor | |
| Clamping device | Hydraulic System | 1.5Kw/8L/10Mpa |
| Flatness of table( Table Flatness) | ±0.02mm/M | |
| Main Power | 380V/50Hz/3Phase | |
| No | Name | Brand |
|---|---|---|
| 1 | CNC Controller System | Abel Japan |
| 2 | Hydraulic System | Taiwan vane pump solenoid valve |
| 3 | Driver | Mitsubishi |
| 4 | Servo Motor | Mitsubishi |
| 5 | Cylinder sealing element | Japan NOK |
| 6 | Single/double pole air switch | South Korea LS |
| 7 | AC contactor, thermal relay | France Schneider |
| 8 | Circuit breaker, button | France Schneider |
| 9 | Miniature relay | France Schneider |
| 10 | White steel knife | Korean chloe |
| 11 | Linear Guides | Taiwan HIWIN |
| 12 | Machine Tool Cable | Germany imported IGUS |
