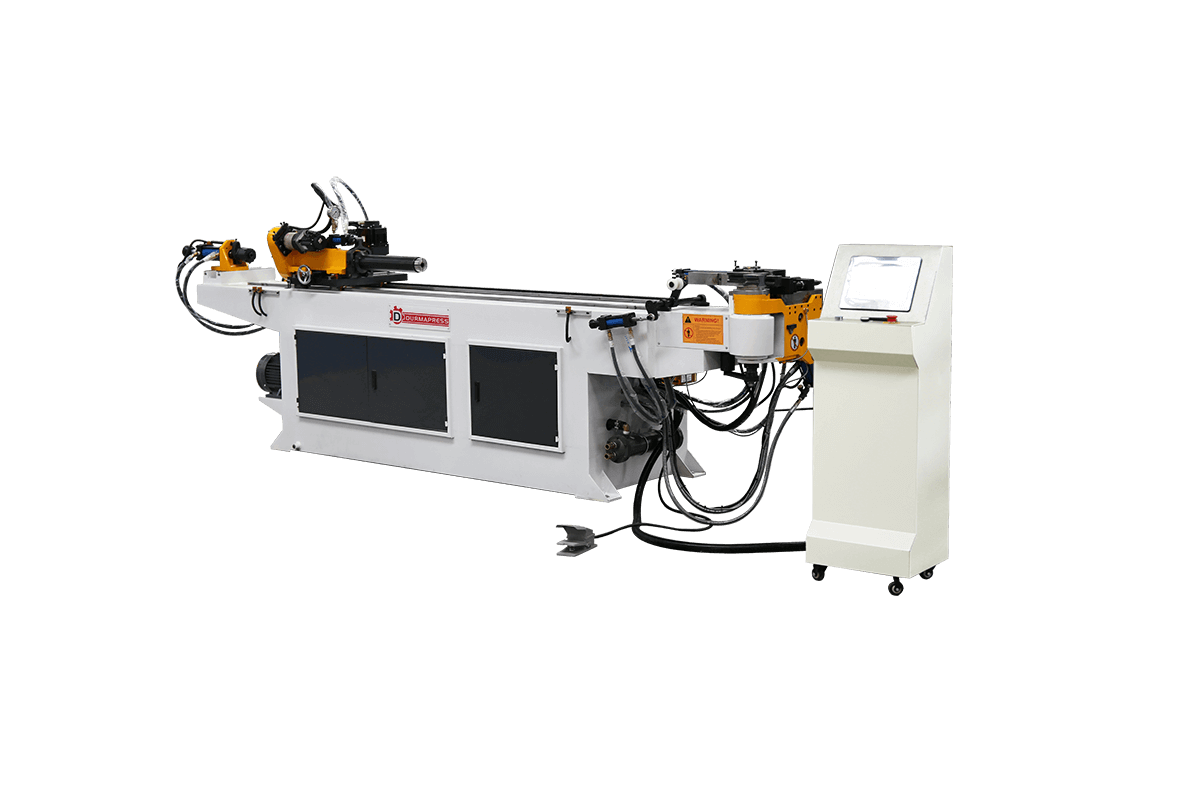

CNC Pipe Bending Machine

features

Fully automated intelligent operation.
The machine bends, feeds, and rotates pipes electrically, while hydraulics manage clamping and mandrel shifting.
Users can choose between fan, water, or oil cooling methods based on their preferences.
Equipped with a touch screen supporting multiple languages, a PLC controller (optional Windows XP Industry PC), providing user-friendly and efficient control.
Includes an auto-lubrication function for ease of maintenance.
Electric and hydraulic parts are sourced from reputable manufacturers in Japan, France, and Germany.
Built on Taiwan's core technology, established since 1989, ensuring reliability and innovation.

Configuration Requirement

Pipe bending machine combines advanced features like the touch screen interface, mandrel bolt support, specialized bending molds, an efficient air cooling system, and a versatile random tool set to deliver precision and flexibility in pipe bending applications.

Mandrel bolt

Bending mould

Air cooling system

servo motor

Touch screen

Random tool

Model interpretation & parameters

Performance advantages

Utilizes world-renowned controllers such as Mitsubishi, Yaskawa, and Delta for the electric control system, ensuring robust performance and stability.
Features an ultra-large CPU capable of storing 400 groups of archives. Additional transmission software can be installed for increased capacity, with the option to store archives on a hard disk for unlimited expansion.
Equipped with a WINDOWS operating system on an industrial computer, providing both servo drive functionality and the convenience of archive management. Archives can be stored on a hard or soft disk for limitless editing possibilities.
Automatically detects and displays errors and faults on the screen for easy operator troubleshooting.
Input processing data through the touch screen allows customization of compensation value, speed, and demould clearance for each elbow based on different materials.

Offers the flexibility to switch between Chinese and English on the touch screen, with an optional feature to order products in other languages.
Supports direct or wrapped material delivery and can automatically switch XYZ coordinates to YBC processing values.
Provides password protection for edited data to prevent unauthorized alterations.
Includes a heat exchanger for automatic heat dissipation in the electric control system. Optionally, an NC air conditioner can be added to extend the service life of the electric control system.
Features an optional automatic oil injection system to reduce elbow friction and ensure high-quality bending.
Each elbow for the same tube can have 5 action sequences and 10 independent speed sections, enhancing work efficiency and minimizing tube interference points.

OUR PARTNER

Brands of Main Components of our CNC pipe bending machine

applications

About Durmapress' Factory

Durmapress specializes in designing, manufacturing and selling various metal processing equipment, including bending machines, shears, punches, laser cutting machines, etc. The company was founded in 2000. With years of experience and technology accumulation. DurmaPress has become one of the well-known brands in China's metal processing machinery industry.
