DP-Hybrid Euro series
CNC Press Brake

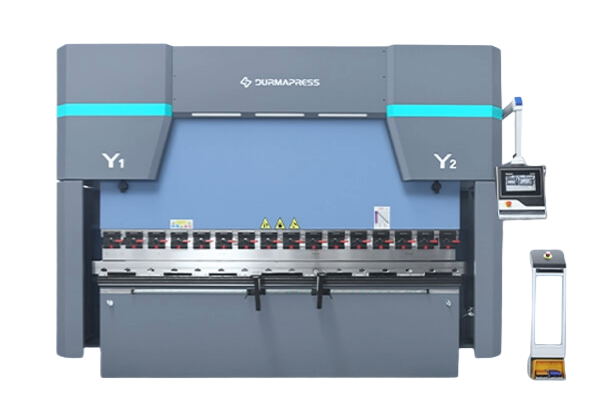

The DP-Hybrid Servo CNC press brake combines innovative technology with DURMAPRESS’s proven expertise. Its dynamic hybrid-servo drive and user-friendly control make it a versatile and powerful solution.
Trusted by 5000+ manufacturers worldwide
Product Overview
Engineered for precision, efficiency, and reliability in modern manufacturing environments
Warning: Undefined array key "hotspot_offset_x" in /www/wwwroot/durmapress.com/wp-content/plugins/elementor-pro/modules/hotspot/widgets/hotspot.php on line 1060
Warning: Trying to access array offset on value of type null in /www/wwwroot/durmapress.com/wp-content/plugins/elementor-pro/modules/hotspot/widgets/hotspot.php on line 1060
Warning: Undefined array key "hotspot_offset_y" in /www/wwwroot/durmapress.com/wp-content/plugins/elementor-pro/modules/hotspot/widgets/hotspot.php on line 1061
Warning: Trying to access array offset on value of type null in /www/wwwroot/durmapress.com/wp-content/plugins/elementor-pro/modules/hotspot/widgets/hotspot.php on line 1061
Revolutionary Bending Technology
The DURMAPRESS CNC press brake machines are designed for precision, durability, and efficiency, providing the perfect solution for your metal fabrication needs.
Advanced Technical Features
- Highly flexible all-round CNC bending machine
- Highly dynamic hybrid-servo drive system
- Built with high-end specifications and execution
- Advanced motion technologies and is still impressively quiet
- User-friendly control system
- Integrated with advanced safety equipment and options
- The best choice for manufacturing complex parts
Intuitive Control System
Touch controls feature the embed-ded, real-time Windows operating system for maximum reliability featuring:
- Numerical touch screen programming
- 15" high resolution color TFT
- Up to 4 axes (Y1,Y2 + 2 aux. axes)
- Crowning control
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- USB, peripheral interfacing
- Profile-T offline software
Cycles Between Maintenance
0
+
Energy Efficiency
0
%
Faster
0
%
Shorter Cycle
0
%
Press Brakes CNC Control System
Customize The Controller For Your DP-Hybird Series
DELEM DA66S
The DA-66S features 2D programming with automatic bend sequence calculation, collision detection, and full 3D setup with multiple tool stations for accurate feasibility feedback.
DELEM DA69S
The DA-69S is a top-of-the-line 3D CNC control, offering advanced programming, automatic bend calculation, collision detection, and full 3D setup for unmatched productivity.
Detailed Design & Components
Explore the precision engineering behind our press brake systems
Machine Frame
Durmapress press brakes feature a robust mono-block frame made from high yield steel, ensuring enduring accuracy and reliability. Each frame is tempered and backed by a 15-year warranty.
Backgauge
We use Taiwan PMI ball screw and linear guide for X-axis precision, ensuring higher accuracy than rod-based systems. The back gauge, controlled by a servo motor with a timing belt & wheel mechanism, offers precise positioning.
Electrical Carbinet
Harnessing the reliability of genuine Schneider components sourced directly from France, renowned for their unwavering stability, impressive durability, and prolonged lifespan.
Stop Finger
It ensures consistent processing position and size by precisely controlling the workpiece stop. The adjustable Stopper Finger position and height accommodate various workpiece sizes and shapes.
Front Supporter
The durable front supporter ensures long-lasting stability and precise positioning, reducing workpiece deformation and enhancing processing accuracy.
Electrical Carbinet
Harnessing the reliability of genuine Schneider components sourced directly from France, renowned for their unwavering stability, impressive durability, and prolonged lifespan.
Motor
Harnessing the reliability of genuine Schneider components sourced directly from France, renowned for their unwavering stability, impressive durability, and prolonged lifespan.
Optional Components
Crowning System
European Type Sectioned 4V Die & Punch
LaserCheck Bending Angle Measurement
DSP Laser Protection
CNC Controlled Sheet Followers
wila tool holders
Calculate Your Bending Force
Use our bending force calculator to get precise press brake pressure results for any material and tooling setup.
Carbon Steel
Stainless Steel
Aluminum
Ensuring precision and durability across all metal forming applications.
Optional features
heavy-duty BackGauge
Standard BackGauge Systems
- X - R CNC axes
- Ball screw driven X axis
- Two linear guides per ball screw
- 600 mm X axis stroke
- 1040 mm total gauge distance
- 250mm R axis stroke
- Positioning accuracy of X axis ± 0.03mm
Standard BackGauge Systems
- X, R, Z1, Z2
- X1, X2, R1, R2, Z1, Z2 (ATF TYPE)
Servo hydraulic system
The ePrAx®control system is an innovative servo drive forpress brakes, featuring an extremely simple cylinder interfacewithout external tubing. The simple drive/cylinder interfaceensures easy installation of the customer's cylinder. As aresult, ePrAx@control offers customers the following benefits:
- Fast - increased performance up to 10% by reducing thecycle time
- Efficient - improving energy efficiency of up to 50 %compared to conventional systems
- Precise - up to 0.005mm positioning accuracy
- Flexible - strokes up to 400 mm realizable
Technical Specifications
Technical Data
Main Components
| Model | Bending Capacity (Ton) | Bending Length(mm) | Bending Speed(mm/s) | Throat Depth(mm) | Main Motor (KW) | Pump | Pole Distance(mm) | Dimensions(mm) |
|---|---|---|---|---|---|---|---|---|
| 50T1600 | 50 | 1600 | 10 | 320 | 5.5 | 13 | 1200 | 2600*1550*2250 |
| 63T2500 | 63 | 2500 | 10 | 320 | 5.5 | 13 | 2000 | 3500*1650*2250 |
| 63T3200 | 63 | 3200 | 10 | 320 | 5.5 | 13 | 2700 | 4200*1650*2250 |
| 80T2500 | 80 | 2500 | 10 | 320 | 7.5 | 16 | 2000 | 3500*1650*2350 |
| 80T3200 | 80 | 3200 | 10 | 320 | 7.5 | 16 | 2700 | 4200*1650*2350 |
| 110T2500 | 110 | 2500 | 10 | 340 | 11 | 20 | 2000 | 3500*1650*2550 |
| 110T3200 | 110 | 3200 | 10 | 340 | 11 | 20 | 2700 | 4200*1650*2550 |
| 110T4000 | 110 | 4000 | 10 | 340 | 11 | 20 | 3300 | 5000*1650*2550 |
| 175T3200 | 175 | 3200 | 10 | 400 | 15 | 20 | 2700 | 4200*1750*2780 |
| 175T4000 | 175 | 4000 | 10 | 400 | 15 | 20 | 3100 | 5000*1750*2780 |
| 210T3200 | 210 | 3200 | 10 | 400 | 18.5 | 32 | 2700 | 4200*1850*2880 |
| 210T4000 | 210 | 4000 | 10 | 400 | 18.5 | 32 | 3100 | 5000*1850*2880 |
| 210T6000 | 210 | 6000 | 10 | 400 | 18.5 | 32 | 4800 | 7000*1850*2880 |
| 275T3200 | 275 | 3200 | 10 | 450 | 22 | 32 | 2700 | 4200*1950*2950 |
| 275T4000 | 275 | 4000 | 10 | 450 | 22 | 32 | 3300 | 5000*1950*2950 |
| 275T6000 | 275 | 6000 | 10 | 450 | 22 | 32 | 4800 | 7000*1950*2950 |
| 310T3200 | 310 | 3200 | 10 | 450 | 22 | 40 | 2700 | 4200*2050*3150 |
| 310T4000 | 310 | 4000 | 10 | 450 | 22 | 40 | 3300 | 5000*2050*3150 |
| 310T6000 | 310 | 6000 | 10 | 450 | 22 | 40 | 4800 | 7000*2050*3150 |
| Name | Model/Manufacturer | Original | Type |
|---|---|---|---|
| CNC system | DA53T Controller | Standard | |
| Electrics | Schneider-France | Limit Switch | |
| Valve | HAWE-Germany | ||
| Servo hydraulics | HAWE-Germany | ||
| Servo Motor | Estun | Positioning Control | |
| Pedal Switch | KACON-Korea | ||
| Die | 4 V Die & Punch | ||
| Backguage | HIWIN Liner Guide Rail | ||
| Clamping | Fast Clamp | ||
| Compensation | Mechanical Auto | ||
| Grating Ruler | FAGOR-France | ||
| Safety Standard | CE OSHA | Optional | |
