Automatic Pipe Loading Machine
Automated pipe loading & positioning for tube processing.
Smart Feeding Solution for Fiber Laser Tube Cutting

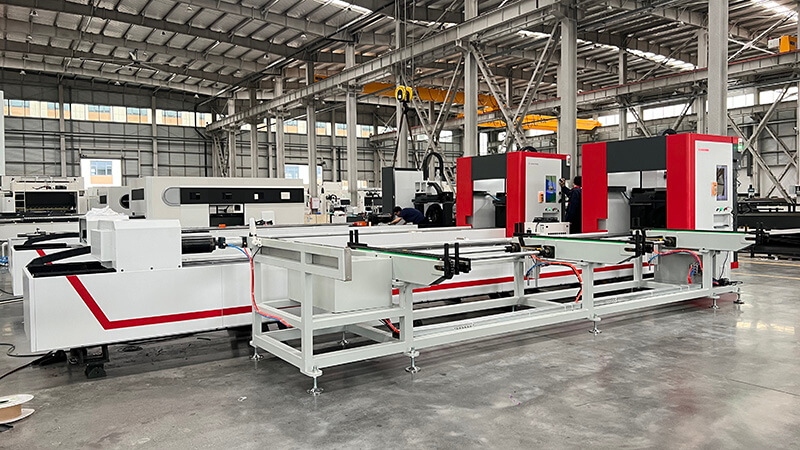

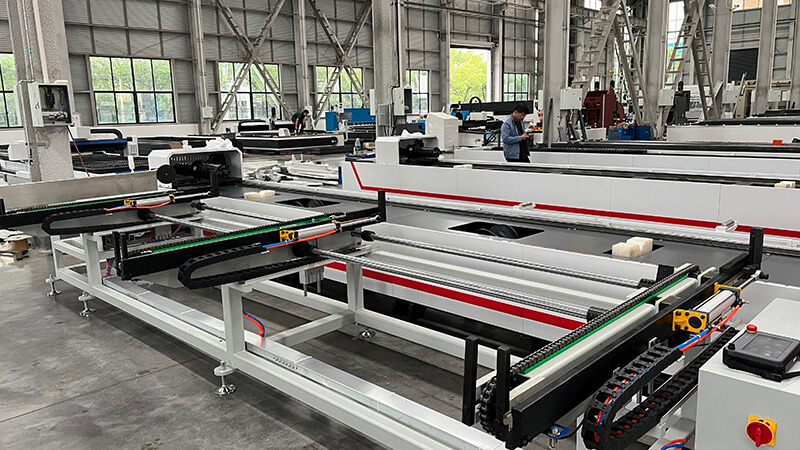

DURMAPRESS Automatic Pipe Loading Machine integrates seamlessly with fiber laser cutting systems. Designed with high-efficiency loading, advanced control, and robust structure, it supports a wide range of pipe sizes, ideal for demanding industrial applications.
As a comprehensive supplier, DURMAPRESS is committed to co-creating the future with our partners. With cutting-edge technology and rich industrial experience, we provide reliable automation solutions tailored to the ever-evolving laser cutting market. Our Automatic Pipe Loading Machine is a vital component of this ecosystem, designed to maximize throughput and streamline tube processing workflows.
Supports both fully automatic and semi-automatic operation, compatible with pipe diameters from Ø20–360mm and lengths of 6/9/12 meters. Ideal for efficient and stable loading to boost productivity.
Built with a welded alloy steel frame and overall tempering treatment. Equipped with high-precision LEITESEN racks and premium gear reducers, ensuring strength, accuracy, and long-lasting performance.
Handles up to 6000kg of pipe bundles, with customizable options available. A perfect match for fiber laser pipe cutting systems, meeting the needs of high-volume and heavy-duty applications.

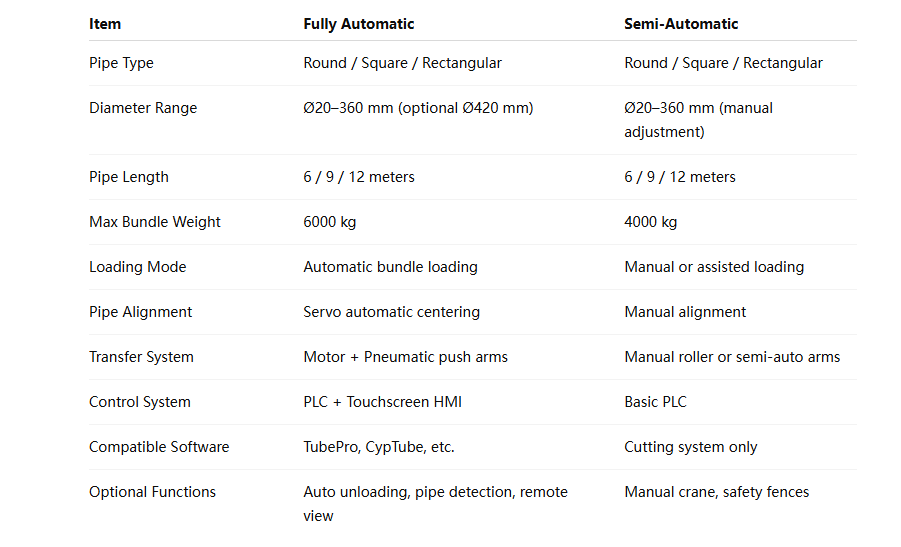

Core parameters
| Item | Fully Automatic | Semi-Automatic |
|---|---|---|
| Pipe Type | Round / Square / Rectangular | Round / Square / Rectangular |
| Diameter Range | Ø20–360 mm (optional Ø420 mm) | Ø20–360 mm (manual adjustment) |
| Pipe Length | 6 / 9 / 12 meters | 6 / 9 / 12 meters |
| Max Bundle Weight | 6000 kg | 4000 kg |
| Loading Mode | Automatic bundle loading | Manual or assisted loading |
| Pipe Alignment | Servo automatic centering | Manual alignment |
| Transfer System | Motor + Pneumatic push arms | Manual roller or semi-auto arms |
| Control System | PLC + Touchscreen HMI | Basic PLC |
| Compatible Software | TubePro, CypTube, etc. | Cutting system only |
| Optional Functions | Auto unloading, pipe detection, remote view | Manual crane, safety fences |
Get a Tailored Quote
Send us your pipe specifications and production requirements, and receive a tailored automatic pipe loading solution within 24 hours.
