Backgauge System for Press Brakes
Solution / Backgauge System for Press Brakes
High-Precision Backgauge System
The back gauge system plays a critical role in bending accuracy and repeatability. At DURMAPRESS, we equip our press brakes with a precision-engineered back gauge that outperforms the competition in both speed and accuracy.
Axis Functions at a Glance
2 Axis Backgauge
X+Y Axis
- High-precision ball screw drive: Compared to conventional round bars, it offers faster positioning and repeatability up to ±0.05mm.
- Lightweight structure, easy maintenance: Simple design makes installation and servicing convenient.
- Covers most standard bending tasks: Meets over 90% of sheet metal processing requirements.
- Supports digital positioning: Compatible with E21., DA41T, and other control systems for efficient and accurate input
4+1 Axis Backgauge
X+Y1+Y2+R+V Axis
- Crowning system (mechanical or hydraulic): Ensures consistent bending angle across the full length
- Lightweight structure, easy maintenance: Simple design makes installation and servicing convenient.
- Covers most standard bending tasks: Meets over 90% of sheet metal processing requirements.
- Modular control systems: Compatible with DA-53Tx, ESA S660, TP10S, etc.
6+1 Axis Backgauge
X+Y1+Y2+R+Z1+Z2+V Axis
- True 3D part positioning: Each finger can move to a different depth, enabling conical or multi-bend parts.
- Improved repeatability: Servo-controlled X1/X2 with ±0.02mm precision.
- Automatic tool change-ready: Supports automation and faster job setups.
- Perfectly suited for DA-58Tx or CT8 to manage asymmetrical and complex backgauge movement with high precision..

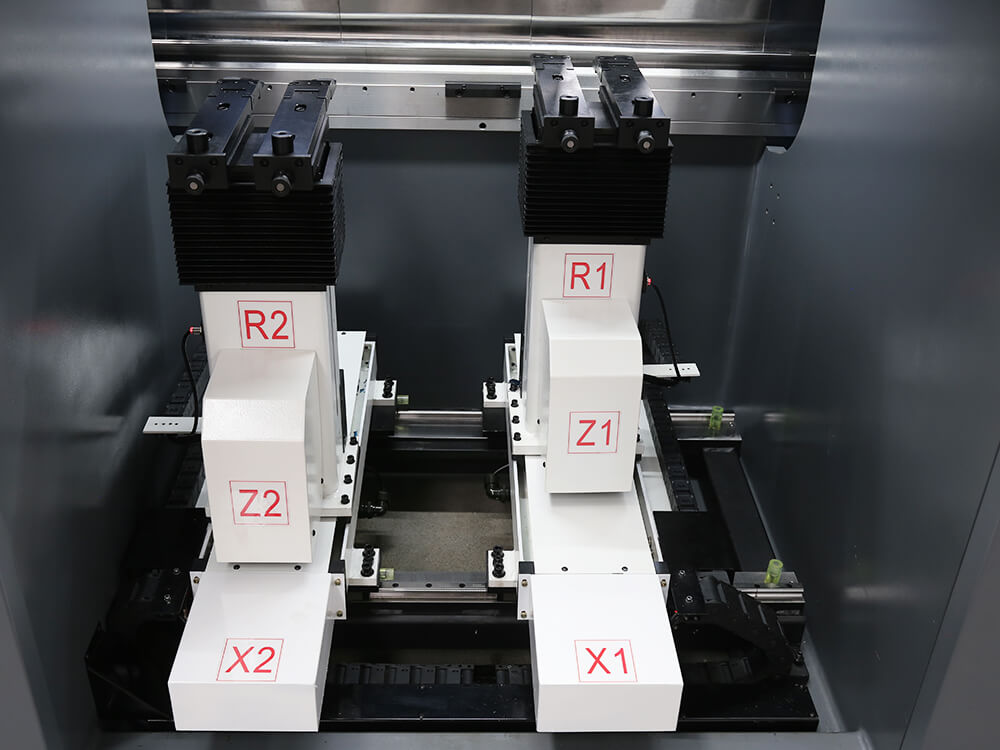

8+1 Axis Backgauge
X1+X2+Y1+Y2+R1+R2+Z1+Z2+V Axis
- Full 3D bending capabilities: All finger positions and ram motions are individually programmable.
- Automatic compensation and adaptive bending: Real-time corrections during the bending process.
- Ideal for robotic integration: Suitable for Industry 4.0 and smart manufacturing setups.
- Fully compatible with advanced systems like DA-66S / DA-69S or ESA S660 for high-end, automated and 3D-capable bending.
