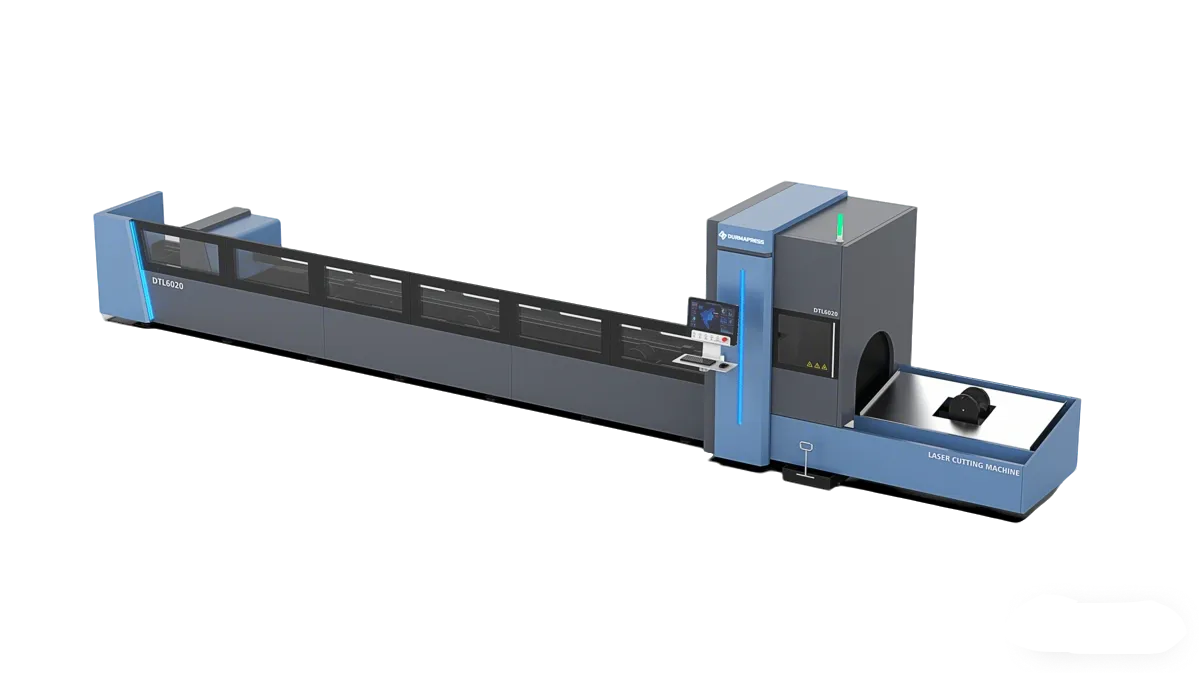

BS-T SERIES

Tube FIBER LASER CUTTING MACHINE

The BS-T Series Tube Fiber Laser Cutting Machine delivers precision and efficiency for cutting metal tubes and pipes. Engineered for high-speed, accurate processing, it’s ideal for complex geometries and various materials.

Trusted by 5000+ manufacturers worldwide

Product Overview

Engineered for precision, efficiency, and reliability in modern manufacturing environments

Revolutionary cutting Technology

Our High-Precision Tube Fiber Laser Cutting Machine represents the latest in industrial cutting technology, designed for metal fabrication and machinery manufacturing.

Advanced Technical Features

Dedicated Tube Cutting – Optimized for high-precision tube processing
Stable Auto Centering – Accurate positioning and cutting
Fast & Reliable Operation – High rigidity and smooth motion
Intelligent CNC Control – Consistent cutting quality with easy operation
Flexible Tube Compatibility – Supports round, square, rectangular, and special-shaped tubes
Extended Processing Lengths – 6 m and 12 m options for diverse production needs
Efficient Clamping System – Reduced setup time and improved productivity

Detailed Design & Components

Explore the precision engineering behind our BS-E series fiber laser cutting systems

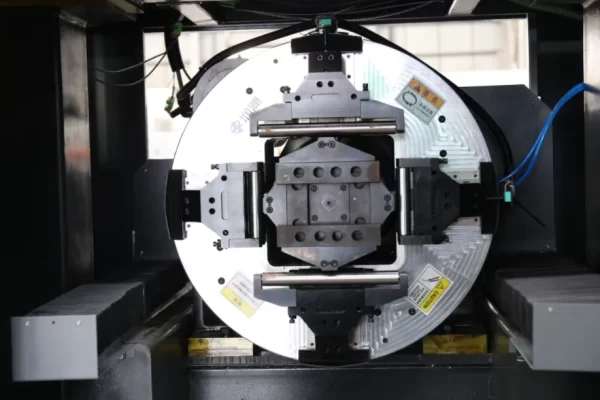

Laser Chuck

Since the cylinder is uesd to clamp the workpiece directly,the cylinder working stroke is the chunk working stroke,and the clamping range is wide. With direct cylinder output, the output force is linearly proportional to the air presssure,which is easy to implement software control.

Laser Cutting Head

Lightweight and impact-resistant, designed for medium- and low-power lasers. Built-in intelligent sensors enable real-time monitoring, rapid diagnostics, and stable, efficient cutting.

Controller

High-end intelligent EtherCAT bus controller designed for high power fiber laser above 8kw.featured by out of box service, easy to install and adjust, full solution
functions,supports custom, automatic and digitization solutions.

Chiller

It is a device that provides cooling for the resonator and the optics in the cutting head. lt features a water-based coolingsystem.Thanks to the dual-chamber system, cooling water at different temperatures is delivered to the optics and the laser power supply according to their needs.

6 Cell Vacuum & Filter System

The vacuum and filter system improves cutting quality, protects health, and keeps the machine clean. The cutting area is divided into vacuum cells that open and close automatically with the movement of the cutting head, ensuring efficient and continuous suction.

Automatic Mechanical Loading System (Option)

The automatic loading system ensures correct tube orientation, precise length positioning, and efficient bundle loading. It supports round, oval, and square tubes up to 120 kg, with fast loading times of ≤ 70 seconds for the first load and ≤ 20 seconds for subsequent loads.

Cypnest Software (Option)

CypNest is a nesting software for CypCut/HypCut laser cutting systems, integrating drawing editing, fast nesting, toolpath generation, and production analysis to improve cutting efficiency and meet diverse production needs.

Cutting Head

Customize The Cutting Head For Your BS-E Series

Bevel Head+45°(Option)

Bevel Head for vertical and bevel cuts from 0° to 45°.Optimal resuits provided through the combination of 5 axis interpolation and software . Positive and negative bevel anglesin one part

PRECITEC (Option)

Laser cutting head in solid state, high power Precitec PROCUTTER, with capacitive sensor for tracking metallic surfaces and support for focal lens 200mm, with cartridge glass protection

Laser Source

Customize The Laser Source For Your BS-E Series

Supports faster cutting speeds and efficient processing of thick and hard materials.
Delivers consistent output with reduced downtime and maintenance needs.
Suitable for metals, plastics, ceramics, and composite materials across various industries.
Ensures accurate cutting with fine details and tight tolerances.
Low power consumption with optimized laser conversion efficiency.

Technical Specifications

Engineered to deliver exceptional performance across a range of manufacturing requirements

For complete technical specifications and custom configuration options
