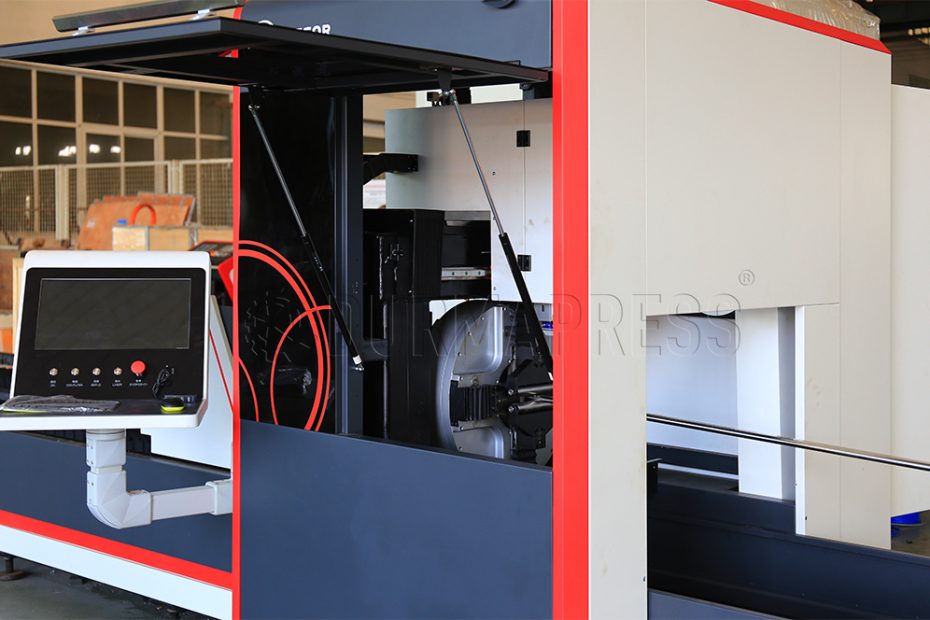

I.Fiber laser cutting machine for switching board and tube Machine characteristics
1, the body adopts steel structure precision welding, the whole machine high temperature annealing, stress failure treatment, to ensure no deformation in 20 years.
2, the operation part of the fully surrounded structure, beautiful and generous, safe and reliable
3, efficient smoke exhaust pollution-free, segmented smoking and dust, reduce human injury Fiber laser cutting machine .
4, machine tool equipped with functional chuck fixture, to adapt to different shapes and sizes of pipes, high precision seam cutting.
5, can process square pipe, round pipe, rectangular pipe, channel steel, I steel, etc. (special-shaped processing pipe can be customized)
6, suitable for cutting 20-220mm regular pipe
Two, product parameters
Dimensions /Dimension 7880*3920*2000mm
Maximum laser output Power / 15KW-50KW
Max output power 1000W-6000W
Power Supply 380V 50HZ/60HZ Max.Cutting speed 100m/min
X/Y positioning accuracy /
XYpositioning accuracy + / - 0.03 mm
Max.Accelerated Speed 1.2g Cut range (X/Y)/
Cutting Aara (YX) φ 20- φ 220x6000mm
3000mm*1500mm
Three, applicable materials
Suitable for carbon steel plate, stainless steel plate, alloy plate, galvanized plate, aluminum plate, copper plate, pipe and other metal materials non-contact rapid cutting, hollowing and drilling processing
