Selecting the right hydraulic shearing machine is a key decision for any sheet metal fabrication operation. Among the most commonly compared options, swing beam hydraulic shears and guillotine hydraulic shears stand out due to their distinct structures, cutting behaviors, and application ranges.
Although both machines are designed for efficient metal cutting, their performance differs significantly depending on material thickness, accuracy requirements, and production environment. This article provides a structured comparison to help you clearly understand the differences and make the right purchasing decision.
Understanding Hydraulic Shearing Machines in Sheet Metal Fabrication
Hydraulic shearing machines are widely used for straight-line cutting of sheet metal such as carbon steel, stainless steel, and aluminum. By applying controlled hydraulic force to the cutting blade, these machines deliver clean cuts with high efficiency and minimal deformation.
The choice between different shear types is not only about cutting capacity, but also about long-term accuracy, operating cost, and production consistency.
What Is a Swing Beam Hydraulic Shear?
Structural Design and Cutting Principle
A swing beam hydraulic shear uses a pivoting upper blade mounted on a swinging arm. During the cutting process, the blade moves along a slight arc rather than a straight vertical path. This design allows the machine to maintain a relatively simple structure while delivering reliable cutting performance.
The cutting angle is typically fixed, and blade clearance is adjusted mechanically according to material thickness.
Advantages of Swing Beam Shears
Swing beam shearing machines are valued for their practicality and cost efficiency. Key advantages include:
- Simple mechanical structure with fewer moving components
- Lower manufacturing and maintenance costs
- Smooth cutting action for thin to medium sheet metal
- Suitable for general fabrication and light industrial use
These characteristics make swing beam shears a popular choice for workshops focused on versatility rather than ultra-high precision.
Limitations and Considerations
Despite their advantages, swing beam hydraulic shears have limitations:
- Slight variation in blade clearance during cutting
- Less suitable for thick plates requiring strict tolerance control
- Limited automation options compared to guillotine shears
Understanding these trade-offs is essential when evaluating long-term production needs.

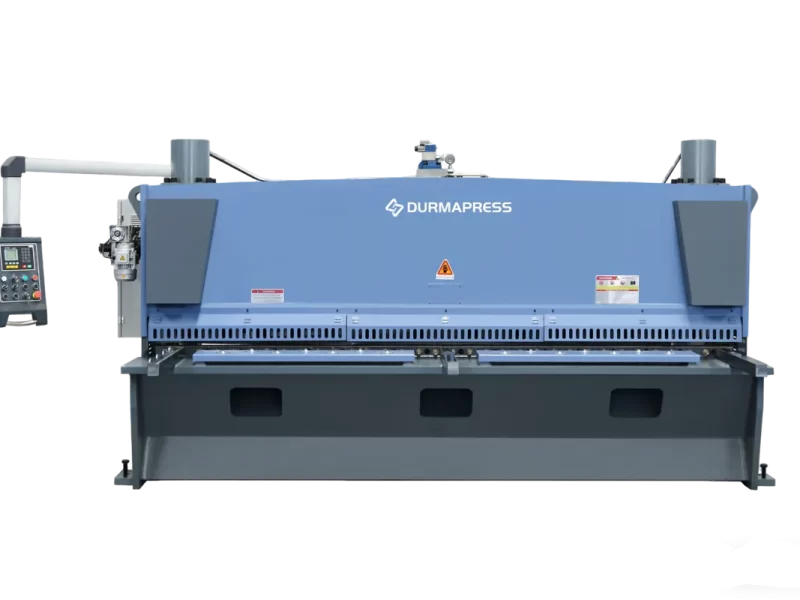

What Is a Guillotine Hydraulic Shear?
Vertical Cutting Structure Explained
A guillotine hydraulic shear features a vertically guided ram system, allowing the upper blade to move straight down along linear guides. This vertical cutting motion ensures consistent blade clearance across the entire cutting length.
The rigid frame structure significantly enhances cutting stability, especially when processing thicker materials.
Advantages of Guillotine Shears
Guillotine hydraulic shears are designed for precision and durability. Their main advantages include:
- High cutting accuracy and clean edge quality
- Excellent structural rigidity and long-term stability
- CNC-controlled blade gap and cutting angle adjustment
- Strong performance when cutting thick or high-strength materials
These features make guillotine shears ideal for industrial-scale production and precision-oriented applications.
Limitations and Considerations
The main considerations when choosing a guillotine shear include:
- Higher initial investment compared to swing beam models
- More complex structure requiring professional maintenance
- Larger footprint and higher machine weight
However, for demanding production environments, these factors are often justified by performance benefits.
Swing Beam vs Guillotine Hydraulic Shear: Detailed Comparison
| Comparison Item | Swing Beam Hydraulic Shear | Guillotine Hydraulic Shear |
|---|---|---|
| Cutting Motion | Swinging arc movement | Vertical linear movement |
| Cutting Accuracy | Medium | High |
| Frame Rigidity | Standard | High rigidity |
| Blade Clearance | Manual / Mechanical | CNC-controlled |
| Suitable Thickness | Thin to medium sheets | Medium to thick plates |
| Edge Quality | Good for general use | Excellent and consistent |
| Automation Level | Basic CNC backgauge | Full CNC integration |
| Maintenance Cost | Lower | Higher |
| Initial Investment | More economical | Higher |
While the comparison table highlights the key differences, the practical impact of these factors is often best understood in real production scenarios.
The higher cutting accuracy of guillotine hydraulic shears mainly comes from their vertical cutting motion and rigid frame structure, which helps maintain consistent blade clearance when processing thicker materials.
Swing beam shears, on the other hand, rely on a pivoting cutting mechanism. This design reduces machine complexity and cost, making them a practical choice for workshops focused on thin to medium sheet metal where ultra-tight tolerances are not critical.
The differences in cutting accuracy and stability largely come from the hydraulic shear working principle and the way the cutting beam moves during operation.
How to Choose the Right Hydraulic Shear for Your Application
Choose a swing beam hydraulic shear if:
- Your production mainly involves thin to medium sheet metal
- Budget control is a primary concern
- Your workshop focuses on general-purpose fabrication
Choose a guillotine hydraulic shear if:
- High cutting accuracy is essential
- You frequently process thick or high-strength plates
- CNC automation and consistency are required
A well-informed selection improves productivity and reduces long-term operational costs.
Common Misconceptions When Selecting a Hydraulic Shearing Machine
A common misconception is that guillotine shears are always the better option. In reality, swing beam shears remain highly effective for many applications. Another misunderstanding is assuming blade quality alone determines accuracy, while machine rigidity and clearance control are equally important.
Conclusion
Both swing beam and guillotine hydraulic shears offer distinct advantages in sheet metal fabrication. The best choice depends on material thickness, accuracy requirements, and production scale.
At Durmapress, we manufacture both swing beam and guillotine hydraulic shearing machines, allowing us to provide application-driven recommendations tailored to real production needs.
FAQ: Swing Beam vs Guillotine Hydraulic Shear
Is a guillotine hydraulic shear more accurate than a swing beam shear?
Yes, due to its vertical cutting structure and rigid frame.
Which hydraulic shear is better for thick plate cutting?
Guillotine hydraulic shears are better suited for thick materials.
Are swing beam shears suitable for industrial production?
They are suitable for light to medium industrial applications.
Which machine has lower maintenance costs?
Swing beam hydraulic shears generally have lower maintenance costs.
